How to Fix "The Pivot Table Field Name Is Not Valid" in Excel

What Does "The Pivot Table Field Name Is Not Valid" Mean?

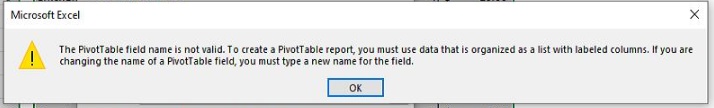

The full Excel message is: “The PivotTable field name is not valid. To create a PivotTable report, you must use data that is organized as a list with labeled columns.”

This means Excel cannot identify a valid name for every field in your selected data range. Usually, one or more header cells are blank, merged, hidden, or outside the actual source range. Put simply, the pivot table field name is not valid error appears because PivotTables require a clear, unique header for each column.

You may also like:

Why I Can't See My Personal Macro Workbook [Easy 6 Fixes]

Why Does Excel Say the Pivot Table Field Name Is Not Valid?

Excel shows this error when the selected source data is not structured correctly for a PivotTable. Common causes include:

• One or more column headers are blank.
• Header cells are merged.
• The selected range includes completely blank columns.
• A column header contains only spaces or an invalid formula result.
• The PivotTable source range is incorrect or incomplete.
• Hidden columns contain missing or invalid headers.
• The workbook data is damaged or has formatting issues.
• Background refresh pulls in a changed range with missing headers.

A pivot field name is not valid message mostly appears during setup or when refreshing, usually points to a changed source range or header problem.

How to Fix "Pivot Table Field Name Is Not Valid" Error (Step-by-Step)

Once you confirm that the issue comes from your PivotTable source data, use the fixes below in order. Start with the header row because it solves most cases. If Excel still cannot create or refresh the report, check the selected data range and connection settings.

Method 1: Check and Fix Column Headers (Recommended First Step)

A PivotTable needs one clear header for every column in the source data.

• Open the worksheet that contains your source data.

• Check the first row of the selected range.

• Make sure every column has a header name.

• Replace blank headers with meaningful names, such as “Sales,” “Date,” or “Region.”

• Remove duplicate headers and headers containing only spaces.

• Try creating or refreshing the PivotTable again.

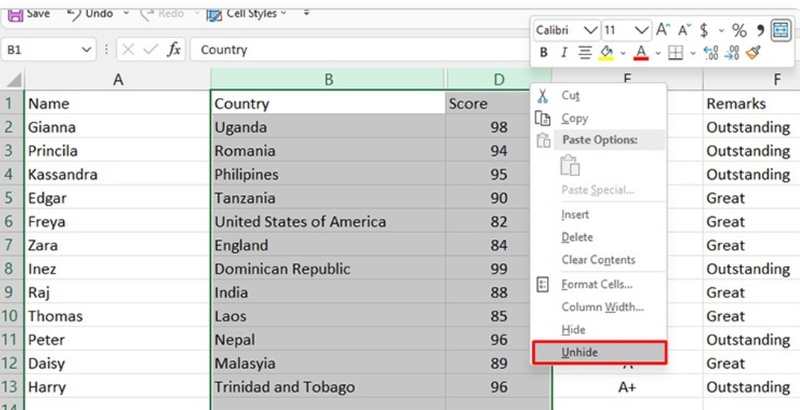

Method 2: Unhide Columns and Remove Blank Columns

A hidden or completely blank column inside your data range can cause Excel to read the source incorrectly.

• Select the columns around your data range.

• Right-click the selected column letters and choose Unhide.

• Check every visible column for a proper header name.

• Delete any completely blank columns within the PivotTable source range.

• Refresh or create the PivotTable again.



You may also like:

How to Remove Empty Rows in Excel Quickly [8 Ways]

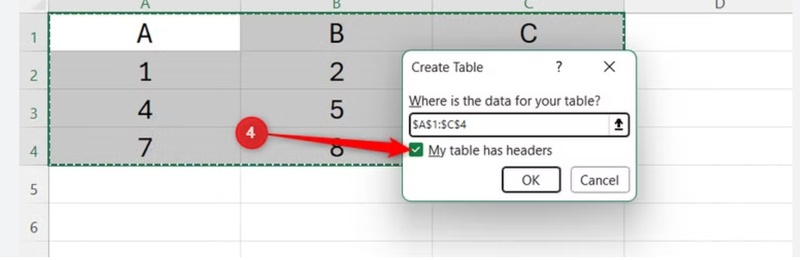

Method 3: Convert Your Source Data into an Excel Table

Turning the data into an Excel Table gives Excel a structured source range with consistent headers.

• Click any cell inside your data set.

• Press Ctrl + T or choose Insert > Table.

• Confirm that the selected range is correct.

• Check My table has headers.

• Click OK.



• Create a new PivotTable using the Excel Table as the source.

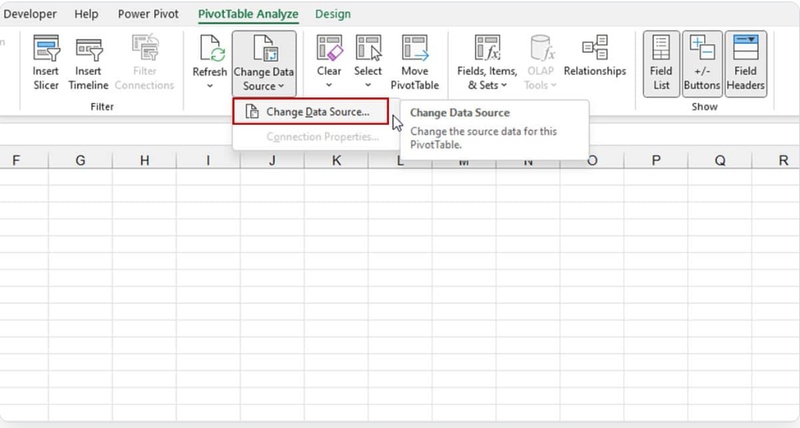

Method 4: Select the Correct Data Range

The error may appear when your PivotTable includes empty rows, title rows, notes, or unrelated columns.

• Click anywhere inside the PivotTable.

• Go to PivotTable Analyze > Change Data Source.

• Select only the data range containing the header row and actual records.

• Exclude blank columns, report titles, totals, and notes outside the table.

• Click OK, then refresh the PivotTable.

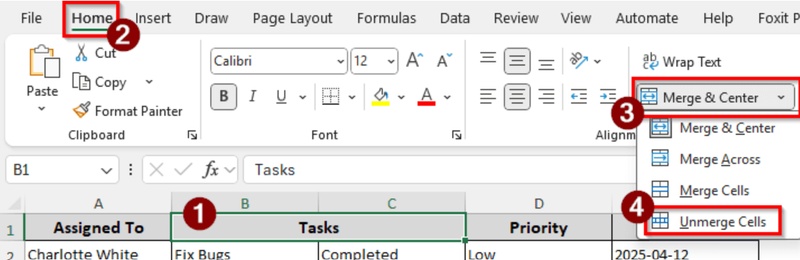

Method 5: Unmerge Cells in the Header Row

Merged header cells do not work properly in PivotTable source data because Excel needs one field name per column.

• Select the header row in your source data.

• Go to Home > Merge & Center.

• Choose Unmerge Cells.

• Add a separate header name to every column.

• Create or refresh the PivotTable again.

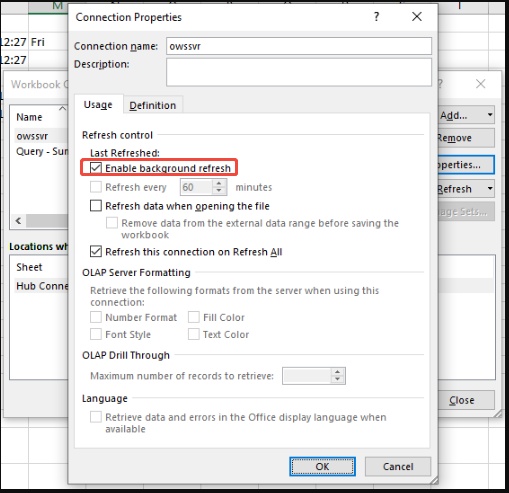

Method 6: Disable the Background Refresh Feature

This method is useful when the error appears during refreshes from an external connection or query.

• Go to Data > Queries & Connections.

• Open the Connections tab.

• Right-click the relevant connection and choose Properties.

• Open the Usage tab and clear the Enable background refresh option.

• Click OK, then select Refresh All.



If this option is not available, your PivotTable may not use an external data connection, so continue with the earlier methods instead.

What If the Error Still Appears After Fixing the Headers?

If every header is filled, unmerged, and correctly included in the source range, but the PivotTable error still appears, the Excel workbook itself may be damaged. This can happen after an interrupted save, system crash, virus attack, or file-transfer problem. In that situation, you should use 4DDiG File Repair to repair the corrupted workbook before creating or refreshing the PivotTable again.

Features of 4DDiG File Repair

4DDiG File Repair is useful because it can:

• Repair damaged Excel files, including XLS, XLSX, and XLSM formats.
• Fix files that will not open, appear blank, show unreadable content, or display errors.
• Recover important worksheet elements, such as tables, PivotTables, charts, and formulas.
• Repair multiple corrupted Excel files at the same time.
• Let you preview repaired files before saving them.
• Provide an Advanced Repair option for more serious file corruption.

How to Repair Corrupted Excel Files in Batch with 4DDiG File Repair

Here’s how you can repair your corrupted Excel files:

• Add damaged Excel files

  Install and open 4DDiG File Repair. Choose File Repair from the left panel, then click Add Files to import one or more corrupted Excel workbooks.



• Start the batch repair

  After adding the files, click Repair All. The software will scan the selected Excel files and repair detected corruption in one batch.



• Preview repaired workbooks

  When the process finishes, click Preview beside a file to check the repair result. Review the worksheet layout and confirm that the content appears correctly.



• Save the repaired files

  Click Save to export one workbook or Save All to save every repaired Excel file at once. Then reopen the repaired file in Excel and create or refresh your PivotTable.

How to Prevent Invalid Pivot Table Field Name

You can prevent the the pivot table field name is not valid error by keeping your source data clean and structured before creating a PivotTable.

• Give every column a clear, unique header name.
• Do not leave header cells blank or fill them with spaces.
• Avoid merged cells in the header row.
• Remove completely blank rows and columns from the data range.
• Keep titles, notes, and totals outside the source table.
• Convert your data range into an Excel Table before creating a PivotTable.
• Check the PivotTable data source after adding new rows or columns.
• Save the workbook regularly to reduce the risk of file corruption.
• Refresh external data connections carefully and confirm that imported headers remain valid.

Following these simple habits will help Excel recognize your data correctly and keep PivotTables working without any error.

Conclusion

The pivot table field name is not valid error is usually caused by small issues in your source data, such as blank headers or the wrong data range. In most cases, a quick check of your headers and PivotTable source will fix it.

But when the file itself seems damaged, or Excel keeps showing errors, don’t waste time rebuilding everything from scratch. Try 4DDiG File Repair to restore your workbook and get back to working with your PivotTable.
