How to Fix Excel 2016 Not Opening XLS Files After KB5002903 Update

Part 1. How to Fix Excel 2016 Not Opening XLS Files After KB5002903 (Quick Fixes)

When Microsoft releases security patches, they occasionally tighten security protocols for legacy formats like .xls. While this protects against macro-based threats, it often breaks compatibility with legitimate files. Here are the most effective ways to resolve the issue.

1. Uninstall KB5002903

Since the issue is directly caused by the KB5002903 update, the most straightforward solution is to remove it from your system. This reverts the Excel executable to its previous stable state.

Steps to Uninstall the Update:

• Go to the Windows Start menu and type "Control Panel".

• Click on "Programs" > "Programs and Features".

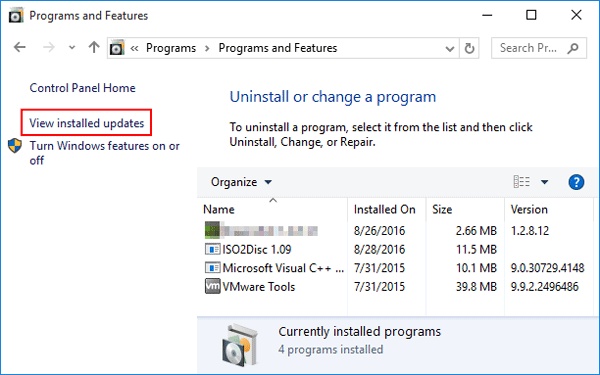

• In the left-hand sidebar, click on "View installed updates".



• In the search box at the top right, type KB5002903.

• Once found “Security Update for Microsoft Excel 2016 (KB5002903)”, right-click it, and select "Uninstall".



• Restart your computer and try opening your .xls files in Excel 2016 again.

2. Fix Corrupted Excel Files with 4DDiG File Repair

Sometimes, the update doesn't just block the file. It causes an internal corruption error in how Excel handles the file's metadata. In such cases, even uninstalling the update might not help if the file structure itself is flagged.

4DDiG File Repair is the premier choice for these scenarios. This is a leading document repair software with an exceptional success rate. It is designed to handle files that won’t open, display blank content, show gibberish, and more. This powerful tool supports various Excel formats and can recover important elements such as tables, pivot tables, charts, and formulas.

Key Features of 4DDiG File Repair:

• Repairs corrupted Excel files quickly and effectively
• Recovers tables, charts, formulas, and pivot tables
• Supports XLS, XLSX, and other Excel formats
• Batch Repairs multiple corrupted files
• Handles blank, unreadable content, gibberish Excel files, and more errors
• Supports Excel 2019, 2016, 2013, and earlier
• Provides advanced repair for complex file corruption
• Can preview repaired result before saving

Steps to fix corrupted xls files with 4DDiG File Repair:

• Install and open 4DDiG File Repair. Select "File Repair" and click "Add Files" to upload your problematic .xls files.



• Click "Repair All". The software will scan and reconstruct the damaged headers and data.



• Tap on “Preview” to check the results and click "Save" or “Save All” the fixed files to a safe location.



3. Replace Excel.exe and Excelcnv.exe with Working Versions

Some advanced users have found success by manually replacing the updated executables with versions from a pre-update backup or a machine that hasn't installed KB5002903 yet.

Steps:

• Locate a source computer that still has Excel 2016 without KB5002903 installed.

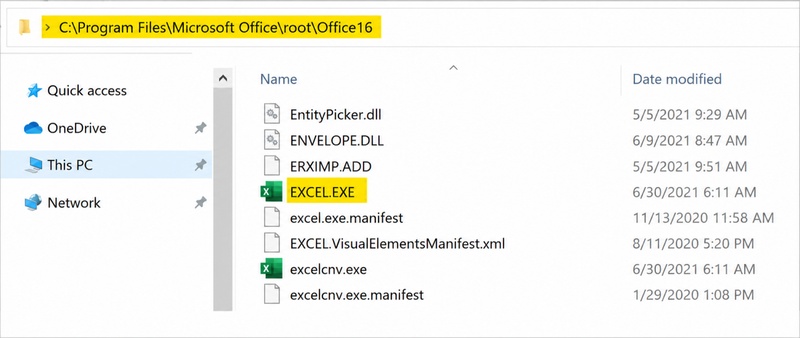

• In the source computer, close all Office applications and go to C:\Program Files\Microsoft Office\Office16 (or the equivalent path on your system).

• Copy Excel.exe and Excelcnv.exe from the folder in the source PC.



• Go to your affected computer that has installed KB5002903, navigate to the Office installation folder:

  64-bit Office: C:\Program Files\Microsoft Office\Office16

  32-bit Office (on 64-bit Windows): typically C:\Program Files (x86)\Microsoft Office\Office16

• Then paste the copied two files to the folder in the affected PC to replace the previous problem two .exe files.

• Restart Excel (or the affected computer) and test opening .xls files.

4. Repair Microsoft Office 2016 Installation

If the update caused a general corruption of the Office installation, a built-in repair might resolve the internal link errors.

Steps:

• Right-click the Start button and select "Apps and Features".

• Scroll down to find Microsoft Office 2016 (or your specific version).

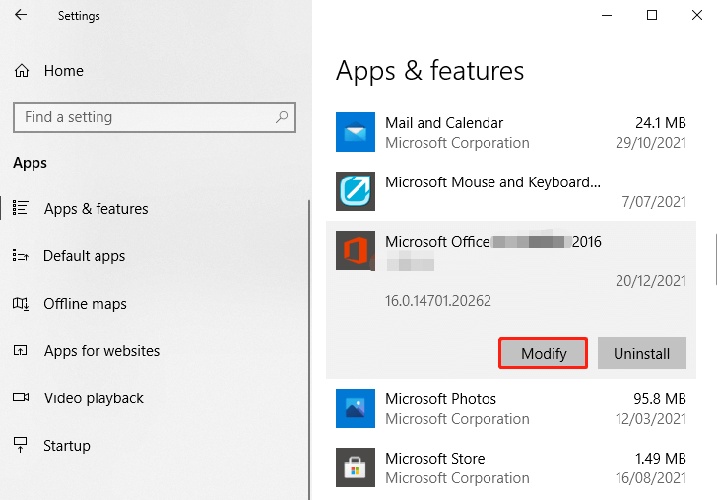

• Click it, then select "Modify" or “Change”.

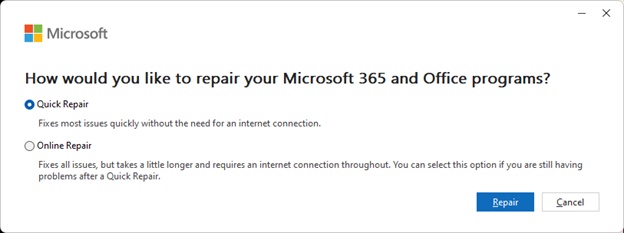

• A window will appear with two options: Quick Repair and Online Repair.

• Select "Quick Repair" first. If that fails, try "Online Repair" (this takes longer but is more thorough).



• After the repair finishes, restart your PC by following the on screen instructions.

You may also like:

Fixed: Excel Cannot Open the File Because the File Format or File Extension Is Not Valid

Part 2. How to Hide KB5002903 to Avoid Reinstalling

One of the most frustrating aspects of uninstalling a Windows update is that Windows Update will often try to "help" by reinstalling it hours later. To prevent this, you should use Microsoft's "Show or hide updates" troubleshooter: wushowhide.diagcab.

Steps to use wushowhide.diagcab to hide KB5002903 Update:

• Download the wushowhide.diagcab tool from the official Microsoft support site.

• Run the tool and click "Next".

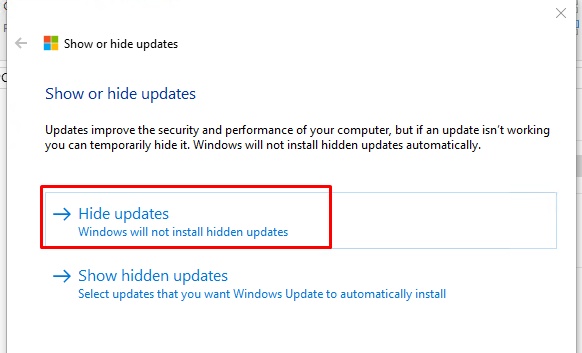

• Select the option "Hide updates".

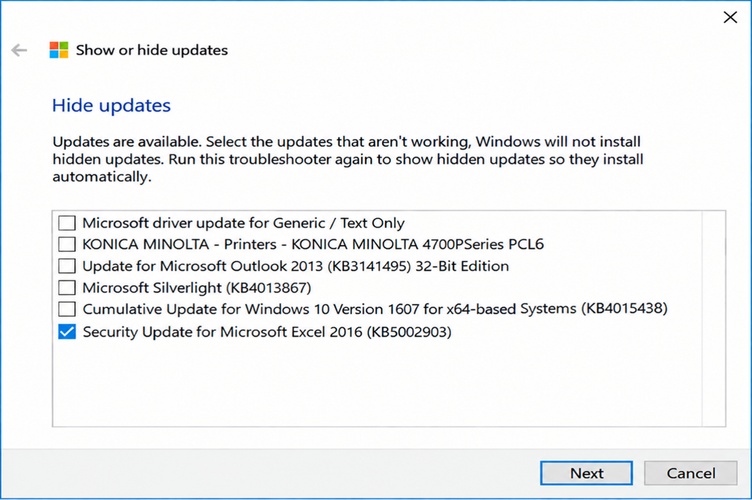

• The tool will scan for available updates. Check the box next to "Security Update for Microsoft Excel 2016 (KB5002903)".

• Click "Next" and wait for the confirmation message.



• Close the tool. Windows will now ignore this specific update until you choose to unhide it.

Part 3. Why Is Excel 2016 Unable to Open XLS Files After KB5002903?

Understanding the technical root cause can help you prevent similar issues in the future. Here are the primary reasons why this specific update broke legacy file support:

1. Legacy XLS Format Compatibility

The binary .xls (Excel 97-2003) format is older and more complex than modern formats. The update tightened parsing and validation, causing previously valid files to be rejected or to crash Excel.

2. Office Executable Changes

The update modified the core Excel.exe and the Excelcnv.exe converter. The latter is responsible for translating old binary data into a format the modern engine can read. The update likely introduced a bug in this converter's translation logic.

3. Difference Between XLS and XLSX

.xls (Legacy) uses a binary structure that is less secure and more prone to corruption. It is limited to 65,536 rows and 256 columns. .xlsx (Modern) uses OpenXML, which is essentially a zipped folder of text files. Most modern security updates prioritize XLSX security, sometimes at the expense of XLS compatibility. It supports over 1 million rows and 16,384 columns.

4. Security Hardening

The update specifically addressed CVE-2026-68817 and other vulnerabilities. By closing these holes, Microsoft tightened the "parser" that reads files. If your .xls file has even a minor non-standard header (common in files generated by third-party apps), the new parser will reject it.

5. Other Possible Factors

• Stricter Protected View / File Block behavior
• 32-bit vs 64-bit differences
• Edge cases with certain characters, formatting, or language content
• Subtle regression from the cumulative security changes

FAQs about Excel 2016 .XLS Issue After KB5002903 Installation

Q1: Can I open .xls files in Excel Online or LibreOffice as a temporary alternative?

Yes. Excel Online and third-party suites like LibreOffice or Google Sheets use different rendering engines. They are generally not affected by Windows-specific security updates like KB5002903. You can upload your file to these platforms, save it as a modern .xlsx file, and then re-open it in your desktop Excel 2016.

Q2: Does this also affect .xlt, .xla or other legacy formats?

Generally, yes. Any format that relies on the legacy binary parser modified by KB5002903 (including .xlt templates and .xla add-ins) may experience similar crashes or "corrupted" errors.

Conclusion

In summary, the Excel 2016 not opening xls files after the KB5002903 update issue is a conflict between modern security and legacy formats. While uninstalling the patch offers a quick fix, protecting your data is paramount. We highly recommend 4DDiG File Repair to efficiently restore corrupted spreadsheets. It bridges the gap between old files and new security standards, ensuring your productivity remains uninterrupted despite recurring Windows update glitches.
