Windows 11 26H2 TPM 2.0 Requirement: How to Enable, Check & Bypass

1. What TPM 2.0 Means for Windows 11 26H2?

A Trusted Platform Module is a tamper-resistant security component that creates, stores, and protects cryptographic keys and helps protect your PC from unauthorized access. For Windows 11 26H2, TPM 2.0 is part of the minimum system requirements because it enables security features such as Windows Hello, BitLocker, and protection against certain firmware and boot-level attacks.

In most modern PCs, TPM 2.0 is already built into the motherboard or processor but may be disabled by default in BIOS/UEFI. If Windows 11 26H2 check reports that TPM 2.0 is missing, it does not always mean your hardware is incompatible. You may only need to enable it in the firmware settings.

2. How to Check TPM 2.0 Compatibility before Installing Windows 11 26H2?

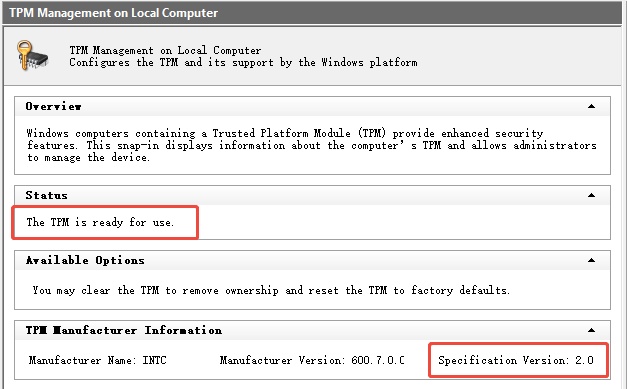

• Press Windows + R, type tpm.msc, and press Enter.

• In the Trusted Platform Module Management window. Under Status, the ideal message is The TPM is ready for use.

• Under TPM Manufacturer Information, find Specification Version. It must show 2.0, not 1.2.



If the console says a compatible TPM cannot be found, the feature may be disabled in UEFI; it does not prove that the motherboard lacks it. If TPM is present but not ready, restart once and install current BIOS/UEFI and chipset updates from the PC manufacturer.

Note:

Do not select Clear TPM as a routine repair. Clearing removes keys and can trigger BitLocker recovery or require Windows Hello to be set up again.

3.What to Do If Your PC Fails the Windows 11 26H2 TPM 2.0 Check?

Match the error to the correct action. A disabled TPM needs a firmware setting, a detection failure calls for firmware and hardware checks, TPM 1.2 may need a manufacturer-supported upgrade, and a board with no TPM 2.0 capability is officially unsupported.

TPM 2.0 is Disabled

• Save work and suspend BitLocker first. Open Settings > System > Recovery, choose Restart now under Advanced startup.

• And select Troubleshoot > Advanced options > UEFI Firmware Settings > Restart.

• In firmware, look under Security, Advanced, Trusted Computing, or CPU Configuration. Enable Security Device Support, TPM Device, Intel PTT, AMD fTPM, or AMD PSP fTPM, depending on the platform. Save changes and restart.



• Run tpm.msc again and confirm Specification Version 2.0.

Windows Cannot Detect TPM 2.0

First perform a full shutdown, disconnect power briefly if appropriate for the device, and restart. Then install the latest BIOS/UEFI and chipset package from the manufacturer. For a complete step-by-step guide, this article covers everything you need to know.

TPM version is 1.2

TPM 1.2 does not satisfy the official Windows 11 requirement. Check the manufacturer’s support page for a BIOS update or TPM firmware conversion specifically approved for the model. Some systems can change from 1.2 to 2.0, while others cannot.

Back up the BitLocker recovery key and decrypt or suspend protection exactly as the manufacturer instructs before a TPM firmware upgrade. Afterward, verify version 2.0 in tpm.msc.

Your PC Does Not Support TPM 2.0

Check the motherboard manual for a TPM header and, more importantly, the exact supported module part number and pinout. TPM modules are not universally interchangeable even when the connector appears to fit. Many compatible processors already provide firmware TPM, so confirm PTT or fTPM support before purchasing hardware.

If the board and processor provide neither firmware TPM 2.0 nor a supported discrete module, the PC does not meet Microsoft’s official requirement. The reliable choices are to remain on a supported operating system, replace the platform, or install Windows 11 26H2 on an unsupported PC.

⚡ 4,How to Install Windows 11 26H2 Without TPM 2.0?

If your computer doesn’t meet Windows 11 26H2’s TPM 2.0 requirement, you may not need to replace your device right away. With 4DDiG Partition Manager, you can create installation media to install Windows on hardware with compatibility limitations. The following sections walk you through the process and highlight important precautions.

Note:

Before proceeding, back up all important data to an external drive or cloud storage first.

• Open the program and select Windows Download and Upgrade, then choose Windows 11 Upgrade.

  FREE DOWNLOAD

  Secure Download

  BUY NOW


• Wait while the program checks your processor, TPM status, Secure Boot configuration, boot mode, and disk layout. Review the compatibility report carefully to see which items pass and which ones require attention.



• If the PC does not meet requirements, click Next and follow the recommended option. Depending on the detected problem, the program may guide you to prepare for Windows 11 installation.



• Then, select the required Windows version, edition, and system language.



• After the preparation process finishes, follow the on-screen instructions to complete the Windows upgrade.



After installation, check Windows Update, Device Security, activation, drivers, and recovery options. Keep the previous system backup until the new installation has been stable through several restarts.

If you’d like to explore other ways to install Windows 11 26H2, check out these articles for additional methods and step-by-step guidance:

• How to Upgrade to Windows 11 26H2 in 3 Methods?
• How to Bypass Windows 11 26H2 Requirements?

More FAQs About TPM 2.0

1. Can I install Windows 11 26H2 on a PC without TPM?

Yes, you can install Windows 11 26H2 on a PC without TPM 2.0. You may need to bypass the TPM requirement using methods such as Registry modifications or third-party tool, like 4DDiG Partition Manager.

2. Can I enable TPM 2.0 without going into BIOS?

Usually no. When PTT or fTPM is disabled, it must be enabled in UEFI firmware. Windows can display TPM status and manage certain functions, but it cannot normally turn on a firmware device that the firmware has disabled. Manufacturer utilities may schedule firmware changes, but the setting is still applied at firmware level.

3. What version of TPM is required for Windows 11?

Microsoft’s minimum Windows 11 requirement is TPM version 2.0. TPM 1.2 is not sufficient for an officially supported installation, even if other hardware requirements pass.

Conclusion

TPM 2.0 is an important requirement for Windows 11 26H2, but a failed compatibility check does not always mean your PC cannot run the update. Checking your TPM status, resolving common configuration issues, and using supported upgrade methods can help ensure a smoother installation process.

For PCs that do not meet the official TPM requirements, 4DDiG Partition Manager provides a simple way to install Windows 11 26H2 by preparing a compatible installation environment. Always back up your data before upgrading and choose the method that best fits your hardware and security needs.
