If you've ever set up a new hard drive or reinstalled Windows, you've probably faced the question: should I create a primary partition or a logical partition? Whether you're a beginner building your first PC or an IT professional setting up servers, understanding primary vs logical partition is essential knowledge. This guide walks you through everything, including what each partition type is, how they differ, their respective pros and cons, and how to manage your partitions efficiently.

1. What are Primary and Logical Partition?

Before comparing them, it helps to understand what each partition type actually is and how it fits into your disk's structure.

Primary Partition

A primary partition is a fundamental division of a physical hard disk that can be used to store data or host a bootable operating system. Under the traditional MBR (Master Boot Record) disk scheme, a single drive can have a maximum of four primary partitions. Each primary partition is directly recorded in the MBR partition table, which makes it independently bootable.

The operating system typically resides on a primary partition, and your BIOS or UEFI firmware reads the partition table to determine which partition to boot from. Common examples include the C: drive on most Windows systems, which is almost always a primary partition.

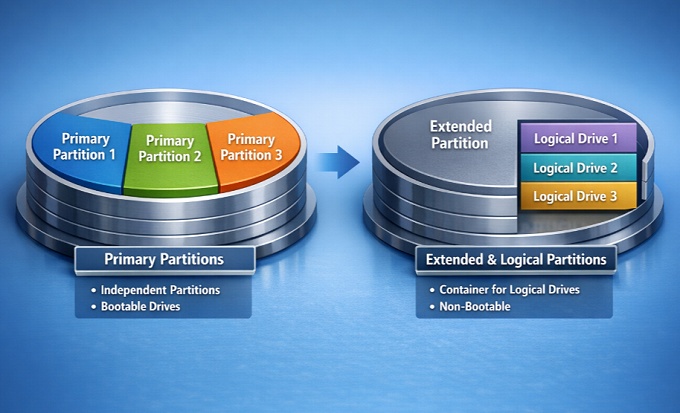

primary vs logical partition

Logical Partition

A logical partition exists inside an extended partition and cannot be bootable by default under MBR. While a primary partition stands on its own, a logical partition depends on an extended partition to exist — think of the extended partition as a container that holds one or more logical partitions inside it.

The practical advantage of logical partitions is that you can have many logical partitions within a single extended partition, making them ideal for organizing data storage, backup volumes, or secondary drives on systems that are already using multiple primary partitions.

Note:

An extended partition is a special type of primary partition that acts as a wrapper. It doesn't store data itself; instead, it contains logical partitions. Under MBR, you can only have one extended partition per disk, but within it you can create as many logical partitions as you need.

2. Primary vs Logical Partition: Differences Overview

After knowing what logical partition and primary partition are, let us have a detailed look at the key differences of each:

Feature Primary Partition Logical Partition
Maximum Number Up to 4 per disk (MBR); unlimited on GPT Unlimited (within an extended partition)
Location Directly on the disk (in MBR partition table) Inside an extended partition
Main Purpose Boot OS, system files, core storage Additional data storage, overflow volumes
Dependency Independent; recognized directly by BIOS/UEFI Depends on extended partition to exist

⚡ Extra Tip: How to Manage Partitions Efficiently?

Whether you're working with primary or logical partitions, keeping your disk well-organized requires reliable partition management software. One of the best tools available today is 4DDiG Partition Manager, one of the best partition manager that simplifies even the most complex disk operations. Even if you are a beginner, it makes managing your drives fast, safe, and intuitive.

Key Features of 4DDiG Partition Manager:

  • MBR to GPT and File System Conversion: Convert between MBR and GPT partition tables, and convert file systems (e.g., NTFS ↔ FAT32) without losing data.
  • OS Migration: Migrate your Windows OS to a new SSD or HDD, no reinstallation required.
  • Disk & Partition Cloning: Clone entire drives or individual partitions, ideal for backing up data or upgrading to a larger HDD/SSD.
  • Unlock/Remove BitLocker: It enables you to unlock or remove BitLocker. Also, it can help you bypass BitLocker recovery screen when you forgot the password.
3 day free trial

  • Download and install 4DDiG Partition Manager. Launch the application, and Select "Partition Management" in the left bar. Select the target partition and click any available actions such as Resize/Move, Create, Delete, Format, or Change Drive Letter.

    FREE DOWNLOAD

    Secure Download

    manage partition
  • Use the drag-and-drop slider to adjust partition size. After setting, you can preview the result of the changes you made. If you are satisfied with it, click OK to queue the operation.

    click ok to proceed
  • The queued resizing operation is shown in the Task List. Click Execute 1 Task(s) and click OK to commit the operation.

    click ok to start
  • 4DDiG Partition Manager will execute changes safely and display a completion report once done.

    manage partition successfully

More FAQs About Primary and Logical Partition

1. What term is used to describe a logical drive?

A logical drive is the term most commonly used to describe a logical partition. The logical drive is the user-facing label; "logical partition" is the technical disk-level term. Both refer to the same underlying concept.

2. Is root partition primary or logical?

On most Linux systems, the root partition is a primary partition. However, on GPT disks, this distinction becomes less relevant since GPT doesn't impose the four-partition limit and all partitions are technically equivalent in terms of bootability.

3. Which partition style is best for SSD?

For modern SSDs, GPT is strongly recommended over MBR. GPT supports drives larger than 2TB, allows up to 128 partitions natively, and eliminates the need for the primary vs logical partition distinction entirely. GPT also offers better redundancy with backup partition table headers.

✔Extended Reading: How to Split Partition in Windows 11/10/8/7 without Losing Data

Conclusion

Understanding the difference between primary vs logical partition is more than just technical trivia. To summarize: primary partitions are bootable, limited in number under MBR, and ideal for OS installation; logical partitions are flexible, unlimited in number, and perfect for data storage. If you're on a modern system, consider using GPT to bypass these limitations altogether.

No matter which partition structure you use, managing it effectively is key. 4DDiG Partition Manager make it easy to create, resize, convert, and organize partitions safely. Whether you're a casual user or an IT professional, having reliable partition management software in your toolkit is always a smart move.
