File System NTFS vs exFAT: Which Format Should You Use?

5 mins read

Updated on 2026-03-27 11:16:53 to Hard Drive

If you've ever plugged in a USB drive or formatted an external hard disk, you've probably been confronted with a choice: NTFS, exFAT, or FAT32. Understanding file system NTFS vs exFAT is a practical decision that affects everyday computing tasks.

Whether you're a Windows power user, a Mac-and-PC switcher, or someone managing portable storage across multiple devices, this guide explains everything you need to know and helps you pick the right format for your specific situation.

1. What is exFAT Format & NTFS Format?

📌 NTFS (New Technology File System)

What is the NTFS format? NTFS is Microsoft's proprietary file system that has been the default for Windows installations since Windows XP. NTFS supports advanced capabilities such as file-level encryption (via EFS), fine-grained permission controls, disk quotas, journaling (which helps recover data after crashes), and support for files and volumes of enormous size.

Because of these features, NTFS is the go-to format for Windows operating system drives, internal SSDs, and HDDs where security and reliability are priorities. The main drawback is cross-platform compatibility. MacOS can read NTFS drives but cannot write to them without third-party software, and Linux support requires additional drivers.

file system ntfs vs exfat

📌 exFAT (Extended File Allocation Table)

What does exFAT mean? exFAT was introduced by Microsoft in 2006 specifically to bridge the gap between FAT32 and NTFS for portable storage devices. It's a lightweight but modern file system built for flash-based media such as USB drives, SD cards, and external SSDs.

Using exFAT means you can get virtually unlimited file sizes, broad cross-platform compatibility out of the box (natively supported on Windows, macOS, and Linux), and an architecture optimized for the read/write patterns of flash storage. This makes it the preferred choice for portable storage that needs to move between different operating systems.

2. File System NTFS vs exFAT: Key Differences

Choosing between NTFS vs exFAT or even NTFS vs FAT32 vs exFAT, comes down to your specific use case. The table below gives you a side-by-side breakdown of difference s between NTFS and exFAT, including FAT32 as a reference point:

Feature NTFS exFAT FAT32
Compatibility Windows(native); macOS read-only; Linux with drivers Windows, macOS, Linux (universal) Windows, macOS, Linux (universal)
Security File-level encryption (EFS), permissions, journaling No encryption or permissions No encryption or permissions
Performance Highideal for OS drives & large workloads Well optimized for flash storage Degrades with large files
Max File Size 16 TB (theoretical) 16 EB (virtually unlimited) 4 GB per file
Max Volume Size 256 TB 128 PB 8 TB
Speed Excellent for internal SSDs/HDDs Fast on USB/SD; slight overhead on some OS Slowest of the three
Best Use Case Windows system drives, internal drives USB drives, SD cards, cross-platform sharing Legacy devices, older consoles

💡 File System NTFS vs exFAT: Which is Better?

The answer depends entirely on how you plan to use your drive:

  • Use NTFS if the drive is an internal Windows drive, a system partition, or a drive that stays connected to a single Windows PC. NTFS's journaling, encryption, and permission controls make it the superior choice for security and reliability on fixed storage.
  • Use exFAT if you need a drive that works seamlessly across Windows, macOS, and Linux without driver workarounds. exFAT is the best formatting for external hard drive use cases involving portability and cross-platform access.
  • Avoid FAT32 for new setups. The 4 GB exFAT size limit is a serious constraint.

When it comes to exFAT vs NTFS speed, both file systems are fast in their intended environments. NTFS is slightly faster on internal drives with heavy random read/write workloads, while exFAT vs NTFS performance on USB flash drives and SD cards typically favors exFAT due to its lower overhead.

⚡ Extra Tip: How to Convert from NTFS to FAT32?

Need to make your drive compatible with older devices, car stereos, or gaming consoles? Here's how to convert from NTFS to FAT32 using two straightforward methods.

Note:

Formatting erases all data, so please back up your files first.

Method 1: Using Disk Management

  • Press Win + X and select Disk Management from the menu.

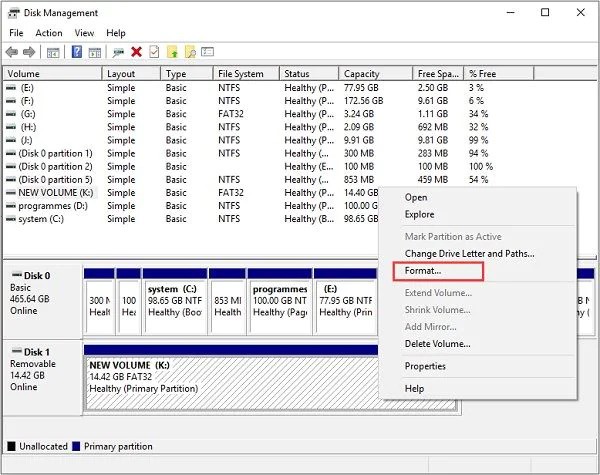

  • Find the NTFS drive in the list of disks. Right-click the volume and select Format.

    select format
  • Choose FAT32 from the File System dropdown. Give the drive a label if desired.

  • Click OK to proceed. Wait for the process to complete.

Method 2: Using 4DDiG Partition Manager

4DDiG Partition Manager, a partition management software, handles the NTFS to FAT32 conversion with no size restrictions and a simple visual interface, making it the best option for users who want a hassle-free experience.

  • Download and install 4DDiG Partition Manager from the official website. Launch the application and select Partition Management from the dashboard. Select the partition you want to convert, then click“NTFS to FAT32.”

    FREE DOWNLOAD

    Secure Download

    Ntfs to Fat32

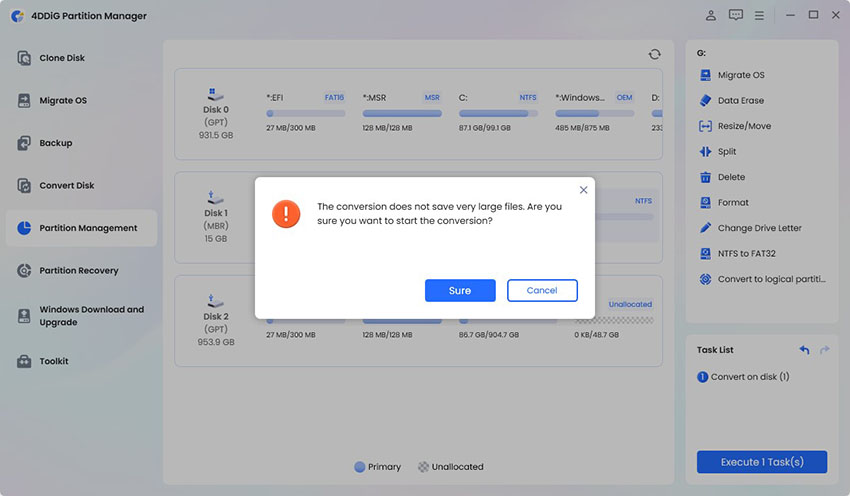

  • Keep in mind that this conversion will not save very large files. Back up any large files from the selected partition to your computer before proceeding. Once ready, click “Sure” to continue.

    click sure to continue
  • The conversion will begin right away and may take some time. When the process is complete, click “Done.”

    complete conversion

Unlike the built-in Windows tool, 4DDiG Partition Manager offers a preview of changes before applying, and includes a recovery safeguard to minimize the risk of data loss during the process. You can also click here to discover more methods for NTFS-FAT32 conversion.

More FAQs About File System NTFS vs exFAT

1. How to format a USB to exFAT?

Connect the USB drive, open File Explorer, right-click the drive, and select Format. Choose exFAT from the File System dropdown and click Start. On macOS, open Disk Utility, select the drive, click Erase, and choose ExFAT as the format. The process takes only a few seconds for most drives.

2. How to format a hard drive to NTFS?

In File Explorer, right-click the drive and select Format. Choose NTFS from the file system list and click Start. Alternatively, use Disk Management for more control over partition sizes. Be aware that macOS will read but not write to the drive without additional software.

3. What is the downside of exFAT?

Despite its cross-platform appeal, the limitations of exFAT include the absence of journaling, meaning it's more susceptible to data corruption if a drive is removed improperly. exFAT also lacks built-in file permissions, encryption, and access control features, making it unsuitable for drives that store sensitive data.

4. What is the best file system for an external hard drive?

For most users, exFAT is the best format because it works natively on Windows, macOS, and Linux without any workarounds, supports files larger than 4 GB, and is optimized for flash storage. However, if your external drive is exclusively used with Windows, NTFS provides better performance, reliability through journaling, and optional encryption.

5. Is exFAT the same as FAT32 format?

No. While both belong to the FAT (File Allocation Table) family, exFAT and FAT32 are distinct formats. FAT32 was introduced in 1996 and has a strict 4 GB maximum file size and an 8 TB volume limit. exFAT was released in 2006 as a modern replacement, removing these constraints while maintaining broad compatibility.

Conclusion

Understanding file system NTFS vs exFAT doesn't have to be complicated. In short: NTFS is the best choice for Windows internal drives that require security, permissions, and reliability; exFAT is the go-to format for portable drives you use across multiple operating systems; and FAT32 is a legacy option best avoided unless you have a specific compatibility requirement.

For users who need to convert from exFAT to FAT32, 4DDiG Partition Manager offers the easiest and most reliable path. It provides a straightforward, visual process for formatting drives of any capacity. Whatever your storage needs, choosing the right file system upfront will save you headaches down the road.
