The Complete Guide to Create System Image Backup on Windows

5 mins read

Updated on 2026-04-22 11:40:46 to Windows Fix

If your computer suddenly crashes, gets infected with malware, or refuses to boot, having a system image backup can save you from losing everything. Many users don’t realize how critical this feature is until it’s too late.

In this guide, you’ll learn how to create, manage, and restore a system image backup on Windows 10 and 11, step by step, so your data and system stay fully protected at all times.

1. What is System Image Backup?

A system image backup is a complete snapshot of your entire system. Unlike regular backups that only copy selected files or folders, a system image includes:

  • Operating system (Windows 10/11)
  • Installed programs and applications
  • System settings and configurations
  • Personal files and documents
  • Boot information and partitions

In simple terms, it creates a replica of your computer at a specific point in time. If something goes wrong, you can restore your computer from a system image backup and return it to that exact state. This is why many professionals consider it one of the most reliable data backup methods available.

2. How to Create a System Image Backup on Windows 11/10?

Creating a system image backup for Windows 10 or 11 is easier than you might think. Windows includes a built-in Windows backup utility that allows you to create a full system image.

Follow these steps to create your system image backup:

  • Search for “Control Panel” in the Windows Start menu and click “Open”.

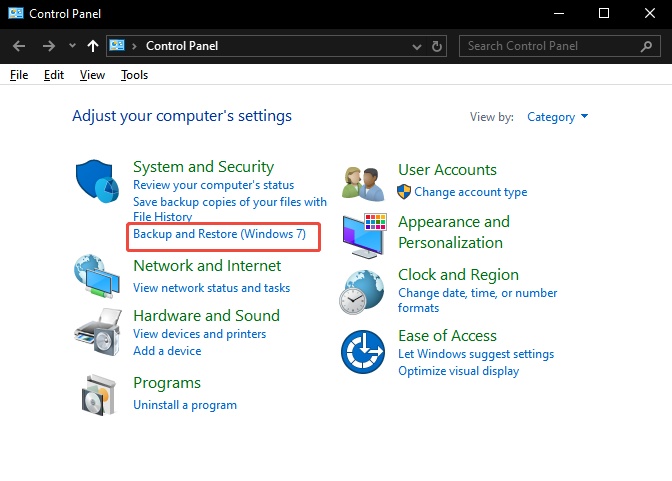

  • Click the “Backup and Restore (Windows 7)” option in the “System and Security” section.

    click backup and restore

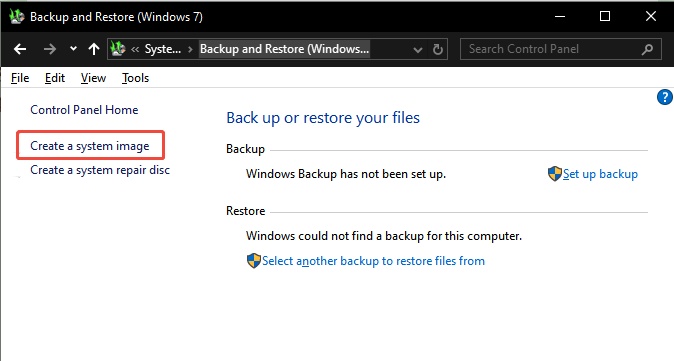

  • Now, select the “Create a System Image” option from the left side of the screen.

    create a system image

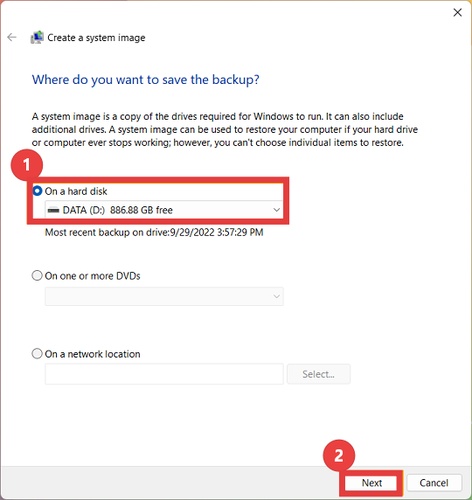

  • Go to the "On the Hard Drive" section and select the hard drive where you want to save your system image, and click the "Next" button.

    choose on a hard drive
  • Now, you will see the backup location, the drives whose system image will be created, and the required free space on the backup location drive. Ensure that your PC is connected to AC power and click “Start Backup” to begin.

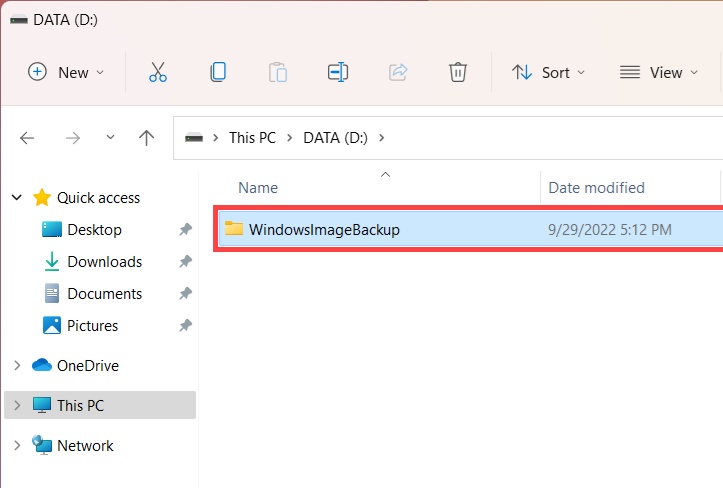

  • The system image creation process will begin now, and once it is complete, click "Close”. Now, you will have a “WindowsImageBackup” folder created in the drive that you selected.

    windows image backup folder

⚡ Bonus: How to Back Up Your Computer Data Safely?

4DDiG Windows Backup is a powerful and user-friendly solution designed to simplify data protection for all types of users. It supports full system backup as well as disk or partition backup, giving you complete flexibility. The intuitive interface makes it easy for beginners to navigate without technical knowledge.

If you want to easily back up your computer without any complex steps, then you can follow the method below with 4DDiG:

  • Download and install the 4DDiG Windows Backup on your computer. Now connect an external hard drive to your computer and launch the software. Click the “Create a Backup Task” option from the main interface to begin.

    FREE DOWNLOAD

    Secure Download

    create backup task
  • Check the partitions or disks that you want to back up and click the “Folder” icon at the bottom to select the location where you want to store the backup.

    choose partitions to backup
  • Click the "Start Backup" button, and then on the pop-up, click "Confirm" to begin the process.

    click confirm to proceed
  • The backup process will start now, and you can track it in the progress bar. Toggle on the "Shut down after all operations are completed" button and wait for the process to complete.

    backup successfully

3. How to Restore from Windows Image Backup?

Creating a backup is only half the job; you must also know how to restore the system image when needed. Knowing how to do this is ideal when your computer starts misbehaving because you can easily restore the system.

In this section, we will guide you in a step-by-step manner to restore the backup image you created before.

  • Go to Settings, then open “Update & Security," and go to Recovery. Click “Restart Now” against the “Advanced startup” option.

  • Choose “Troubleshoot” and go to “Advanced Options," then click “System Image Recovery."

    system image recovery

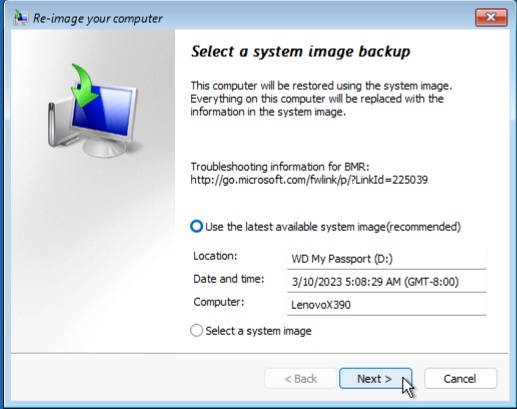

  • Windows will now automatically detect your backup system image. If it does not, click “Next” and then choose the system backup image manually and follow the steps to proceed with the restoration.

    select system image backup
Important Notes:

This will overwrite your current system, and any data created after the backup point will be lost. Make sure your backup is up to date before restoring.

Using this method, you can restore Windows from a system image quickly without reinstalling everything manually. If you want to learn more about restoring Windows from backup, you can read this: 3 Ways to Restore Windows from Backup Easy for Beginners.

4. System Image Backup vs Regular Backup: Key Differences

Understanding the difference between Windows backup and system image helps you choose the right method.

  • System Image Backup
  • Regular Backup
  • Scope
  • Entire system (OS + apps + files)
  • Selected files/folders only
  • Recovery
  • Full system restore
  • File-level recovery
  • Storage Size
  • Large
  • Smaller
  • Speed
  • Slower to create
  • Faster
  • Flexibility
  • Less flexible
  • Highly flexible
  • Best Use
  • Disaster recovery
  • Daily backups

In short, a full system image backup is best for complete recovery. Regular backups are better for everyday file protection, and ideally, you should use both together.

✔ Extended Reading: Incremental vs Differential Backup: What’s the Difference?

More FAQs about System Image Backup

1. What is a Windows image?

A Windows image is a complete copy of your operating system, including installed programs, settings, and files. It allows you to restore your PC exactly as it was when the image was created.

2. Do I need a system image backup?

Yes, especially if you rely heavily on your computer. A system image backup ensures you can recover from system crashes, ransomware, or hardware failures without losing important data or reinstalling everything.

3. Does system image backup include files?

Yes, a system image backup of Windows 11/10 includes all personal files, applications, and system settings. It’s a complete snapshot of your entire computer.

4. Does Windows system image backup everything?

Almost everything. It includes system partitions, installed software, and files, but it may not include external drives unless you manually select them.

5. How long does a system image backup take?

It depends on your data size and drive speed. Typically, it can take anywhere from 30 minutes to several hours. Using modern SSDs or advanced tools can significantly speed up the process.

6. How to back up the Ubuntu system image?

For Ubuntu, you can use tools like Clonezilla or Timeshift to create a system image. These tools work similarly by creating a full snapshot of your Linux system.

Conclusion

A system image backup is one of the most powerful ways to protect your entire computer from unexpected failures. It ensures that your operating system, programs, and files can be restored quickly and efficiently.

While Windows provides a built-in solution, using advanced tools like 4DDiG Windows Backup offers greater flexibility, speed, and reliability. If you want complete peace of mind, combining system image backups with regular backups is the best strategy for long-term data protection.
