How to Format an SDHC Card to FAT32 Safely

1. What Format Should an SDHC Card Use?

Most SDHC cards should use FAT32. Under the SD Association capacity standards, SDHC covers cards over 2GB through 32GB and uses the FAT32 file system.

NTFS is not a good default for an SDHC card used in cameras or portable electronics. Windows can read it, but many cameras, dash cams, game systems, and embedded devices cannot. Choose FAT32 unless the device manufacturer explicitly requires another format.

Do not confuse SDHC with SDXC. A card larger than 32GB is normally SDXC and typically uses exFAT rather than FAT32. Check the logo and capacity printed on the card before selecting a file system.

2. Before You Format the SDHC Card

Formatting erases access to the files currently stored on the card. Back up important photos, videos, and documents to a computer or another drive first. Then check the following items:

• Move the physical lock switch on a full-size SDHC card or SD adapter to the unlocked position.
• Confirm that your card reader recognizes the card and shows the expected capacity.
• Make sure the target camera or device supports SDHC and the card’s capacity.
• Close photo-import, backup, antivirus, or media applications that may be using the card.

A damaged adapter or a lock switch in the wrong position can make a healthy microSDHC card appear write-protected.

⚡ 3. How to Format SDHC Cards in Windows?

Windows provides more than one way to format an SDHC card. A partition tool is useful when you want a clearer view of the removable disk, need to choose FAT32 directly, or are unable to format SDHC card through File Explorer.

Method 1: Format the SDHC Card via 4DDiG Partition Manager

4DDiG Partition Manager lets you view the card as a disk partition and choose the volume label, file system, cluster size, and format type in one interface. This can be easier than relying on a short Windows dialog, especially when several drives are connected.

• Insert the SDHC card into a reliable card reader and connect it to the Windows PC.

• Install and launch 4DDiG Partition Manager, then open Partition Management. Locate the removable card by matching its capacity. Select its partition and choose Format.

  FREE DOWNLOAD

  Secure Download

  BUY NOW

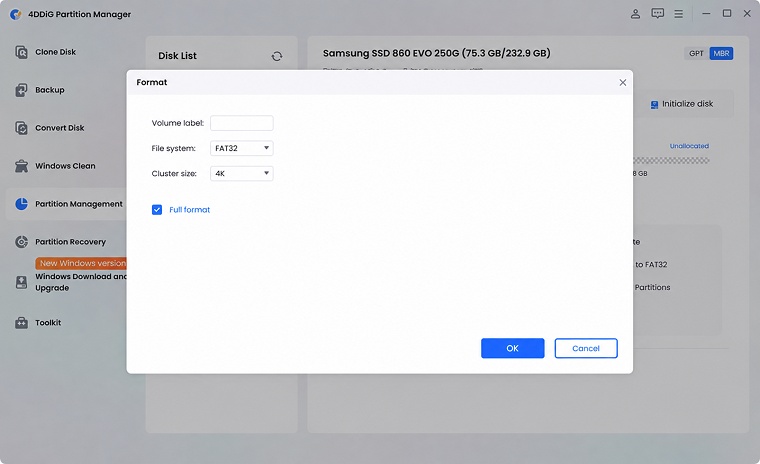

• Set the file system to FAT32. Enter a simple volume label if needed and leave the cluster size at the default value unless the device maker specifies otherwise. Next, click OK.

  Note:

  Use a full format only when you have more time and want the program to check the card more thoroughly.

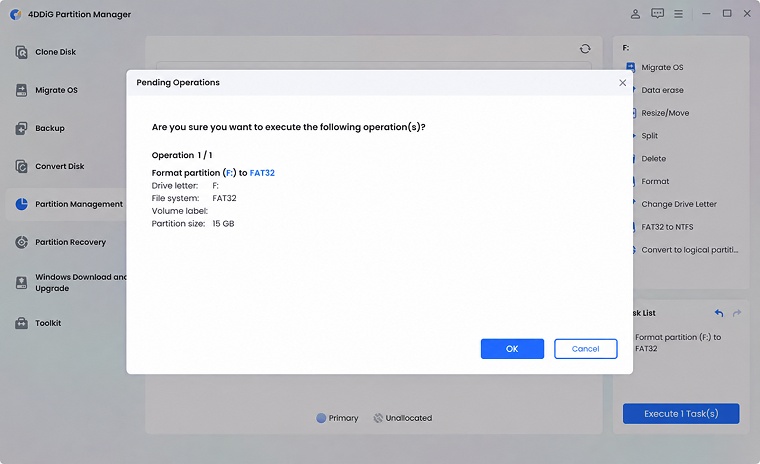

• Review the selected disk and settings, confirm the pending operation, and allow the format to finish without disconnecting the card.



• After formatting, safely eject the SDHC card and test it in the device that will use it.



If the card does not appear in the application, test another reader, adapter, or USB port before assuming the card itself has failed.

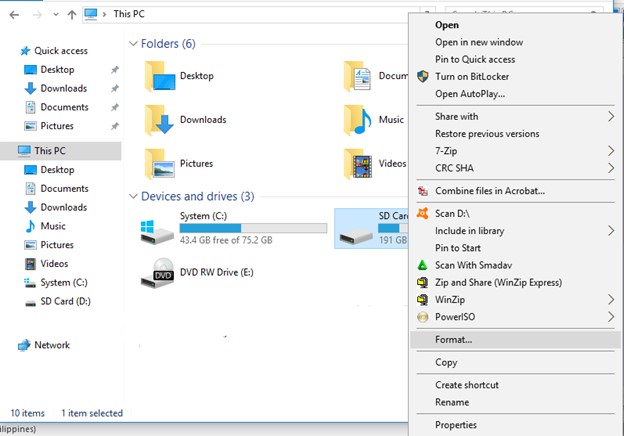

Method 2: Format the SDHC Card in File Explorer

File Explorer is the quickest built-in option when the card is healthy and appears normally in This PC.

• Connect the SDHC card and open File Explorer. Select This PC and identify the removable drive by capacity and drive letter.

• Right-click the card and choose Format.



• Select FAT32 as the file system and keep Allocation unit size set to Default. Leave Quick Format selected for routine use, then click Start.

• Confirm the warning and wait until Windows reports that formatting is complete.

If FAT32 is missing, confirm that the card is actually 32GB or smaller. A card over 32GB is likely SDXC and should normally remain exFAT. Also make sure you selected the card itself, not a recovery or bootable partition on another drive.

❓ What If the SDHC Card Won't Format?

When an SDHC card won't format, first check the lock switch and try another reader. Restart Windows and close any program that may have the card open. If File Explorer says Windows was unable to complete the format, try the partition-manager method above so you can confirm the partition and file system more clearly.

How to Fix SD Card Won't Format on Windows 11/10/8/7?

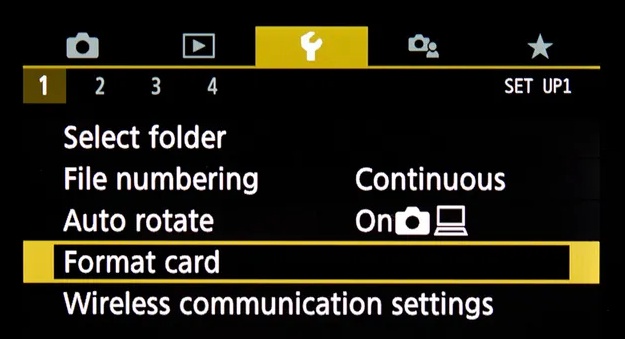

4.How to Format an SDHC Card for a Camera?

In-camera formatting builds the directory structure expected by that specific model and reduces compatibility errors.

The menu wording varies, but the general steps are similar:

• Copy any photos and videos you want to keep.

• Turn the camera off and insert the SDHC card correctly.

• Turn the camera on and open Setup, Settings, or the wrench menu. Select Format Card, Format Memory Card, Initialize, or a similar command.



• Choose the correct card slot if the camera has two slots.

• Confirm the warning and wait without turning off the camera or opening the card door.

• Take a test photo or short video and play it back to confirm that the card works.

To format an SDHC card for use in a camera, select either the standard or quick format option for regular maintenance. If you want format SD card on Android or Mac, follow this guide.

Conclusion

Knowing how to format SDHC cards correctly comes down to three rules: back up the files, choose FAT32 for a genuine SDHC card of 32GB or less, and use the target camera’s Format command before recording. File Explorer is suitable for a healthy card, while 4DDiG Partition Manager provides a clearer formatting workflow when you want to inspect the removable partition and choose FAT32 directly. If formatting repeatedly fails or the card becomes read-only again, stop relying on it. Formatting can rebuild the file system, but it cannot restore failing flash memory.
