How to Convert Boot Drive from MBR to GPT Without Data Loss?

1. Why Convert Your Boot Drive from MBR to GPT?

GPT (GUID Partition Table) offers several advantages over the older MBR (Master Boot Record) format. Many modern operating systems and motherboards are designed to work best with GPT, especially when using UEFI firmware.

You may need to switch MBR to GPT if:

• You’re upgrading to Windows 11
• You want to enable Secure Boot
• Your motherboard supports UEFI mode
• You’re installing a large drive over 2TB
• You need more than four primary partitions

2. Preparations before MBR to GPT Conversion

Check Whether Your PC Supports UEFI

GPT system disks require UEFI firmware to boot correctly. Therefore, you should verify whether your computer supports UEFI before performing the conversion.

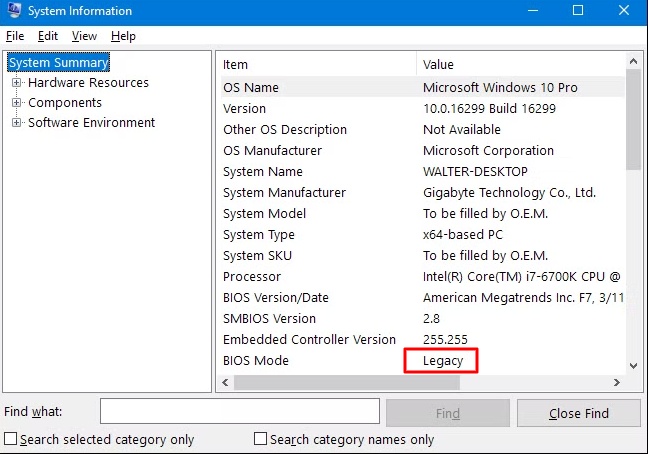

• Press Windows + R to open the Run dialog. Type msinfo32 and press Enter.

• The System Information window will open. Locate BIOS Mode in the right pane.

• Check the value displayed:

• If it says UEFI, your system is ready.

• If it says Legacy, you may need to enable UEFI mode in your BIOS after conversion.



Checking this beforehand can prevent boot issues after you convert drive to GPT.

Back Up Important Data

It’s always recommended to create a backup of important files before making disk-level changes. Unexpected power outages, disk failures, or user errors can occur during any disk operation.

Make Sure There is Enough Space for the EFI System Partition

One commonly overlooked requirement is the EFI System Partition (ESP). Unlike MBR, GPT systems that use UEFI need a dedicated EFI partition that stores boot files. If there isn’t enough available space on the disk, the conversion may fail.

⚡ 3.How to Convert Boot Drive from MBR to GPT Safely?

Method 1: Convert Boot Drive to GPT via MBR2GPT.exe

MBR2GPT.exe is Microsoft’s built-in conversion tool available in Windows 10 and Windows 11.

• Click Start and search for Command Prompt. Right-click it and select Run as administrator.

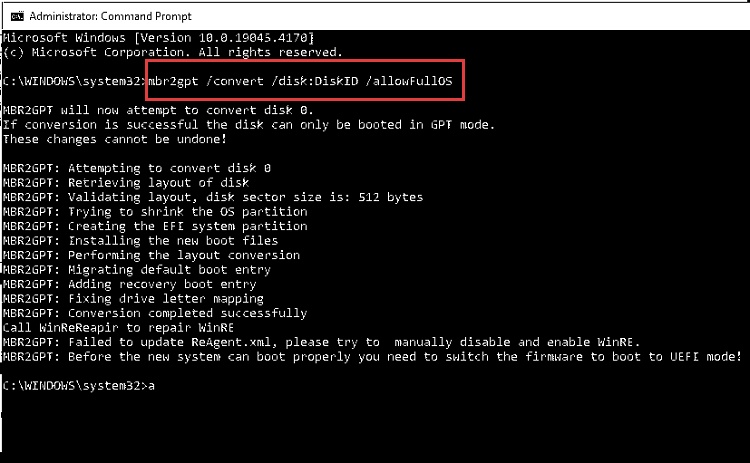

• Before making any changes, validate that your disk meets the conversion requirements. Run: mbr2gpt /validate /allowFullOS



  If validation succeeds, you’ll see a message confirming that the disk is eligible for conversion.

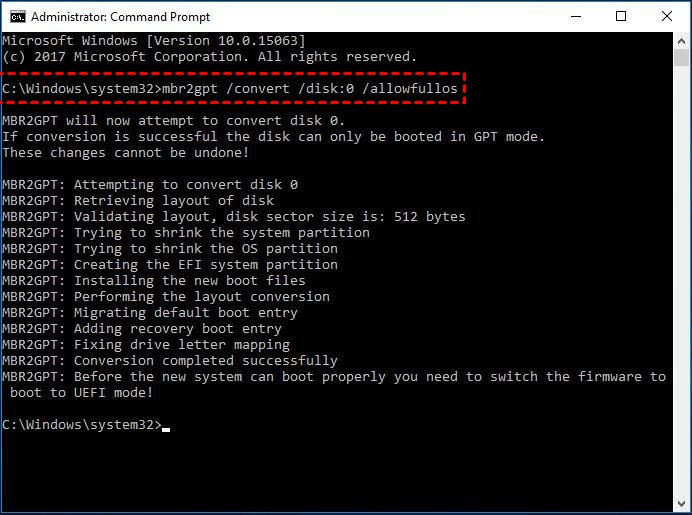

  Once validation passes, execute: mbr2gpt /convert /allowFullOS. Wait for the process to complete.



• After conversion, restart your computer. Enter BIOS/UEFI settings.

• Change Legacy to UEFI, then save changes and restart. Windows should now boot successfully from the GPT disk.

Method 2: Convert MBR System Disk to GPT with 4DDiG Partition Manager

While MBR2GPT works well, many users prefer a graphical solution that doesn’t require command-line operations.

If you’re looking for an easier way to change MBR to GPT without data loss, 4DDiG Partition Manager offers a beginner-friendly solution. Its built-in disk conversion feature allows users to safely change partition style from MBR to GPT through a visual interface.

• Install and launch 4DDiG Partition Manager on your PC. From the left-side menu, choose Convert Disk, then select MBR to GPT Conversion to start the process.

  FREE DOWNLOAD

  Secure Download

  BUY NOW


• Select the MBR disk that you want to convert to GPT and click Continue.



• If the selected drive is your Windows system disk, the software will prepare a special boot environment required for the conversion. Before proceeding, save any open files and make sure your laptop is plugged in or your PC has a stable power supply. Once you're ready, confirm the operation and allow the computer to restart automatically.


  Note:

  If you're converting a non-system or external disk, the conversion can usually be completed directly within Windows without restarting the computer.

• After the system restarts, 4DDiG Partition Manager will automatically load its conversion environment. From there, select the Convert MBR to GPT option to continue.



• The software will display the available disk for conversion. Select the correct drive and click Continue to proceed.


  Note:

  When running inside the conversion environment, only the system drive may be displayed.

• The software will now start converting. During this stage, avoid turning off your computer or interrupting the process.

• Once the conversion is finished, follow the steps to change the boot mode from Legacy BIOS to UEFI, save the changes, and restart the computer. Windows should now boot from the GPT disk normally.



Windows should now boot from the GPT disk successfully. For users who want to convert MBR system disk to GPT with minimal effort, this method is often the simplest approach.

More FAQs about MBR to GPT Conversion

1. How to convert MBR to GPT without reinstalling Windows?

The easiest way is by using either Microsoft’s MBR2GPT utility or a dedicated partition management tool such as 4DDiG Partition Manager. Both methods preserve your existing Windows installation and files.

2. What tool converts MBR to GPT?

Windows includes the built-in MBR2GPT.exe utility, while DiskPart and Disk Management can also perform conversions under certain conditions. For users who prefer a simpler graphical interface, 4DDiG Partition Manager provides an easy way to convert a disk from MBR to GPT without dealing with command-line tools.

3. Why can’t I change MBR to GPT?

Common causes include insufficient space for creating the EFI System Partition, disk errors, too many existing partitions, incompatible BIOS settings, or an unsupported Windows version.

Conclusion

Knowing how to convert boot drive from MBR to GPT is becoming increasingly important as more users upgrade to Windows 11 and modern UEFI-based systems. GPT offers better compatibility, support for larger drives, enhanced partition management, and access to features such as Secure Boot.

For users who want an easier way to convert MBR to GPT without data loss, 4DDiG Partition Manager provides a convenient solution for disk conversion, partition management, and overall drive optimization.
