How to Fix the Windows 11 500GB Storage Bug?

1. What Causes the Windows 11 Storage Bug?

The Windows 11 500GB storage bug is usually tied to CapabilityAccessManager.db-wal, a write-ahead log used by the Capability Access Manager database. Windows uses this service to manage app access to protected capabilities such as location, camera, and microphone. A WAL file records database changes before they are committed.

Normally, it should stay manageable. With this bug, repeated background activity can make the log continue growing instead of being reduced as expected. That is why storage may show system and reserved taking up too much space even though Windows itself has not grown by hundreds of gigabytes.

2. How to Check If the Windows 11 Storage Bug Affects Your PC?

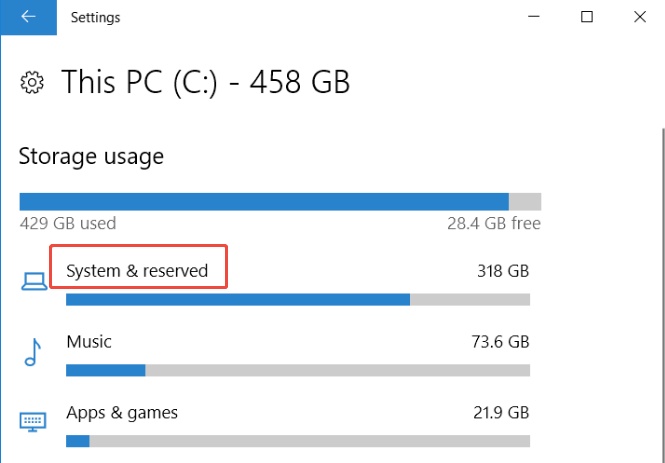

First, open Settings > System > Storage and select System & reserved If this category is far larger than expected while Installed apps and personal files look normal, the bug is possible..

You can also run a disk-space analyzer such as WizTree as administrator. Search for CapabilityAccessManager.db-wal, or sort the C drive by file size and inspect the CapabilityAccessManager folder. Administrator rights help the scanner read the protected system profile.

Note:

Do not force-delete the log while its service is active. The file is protected and in use, and deleting it without fixing the underlying behavior may produce access errors or allow it to grow again.

3. How to Fix the Windows 11 Storage Bug with KB5095093?

KB5095093 is a June 23, 2026 optional cumulative preview update for Windows 11 24H2 and 25H2. Microsoft states that it improves disk-space usage for CapabilityAccessManager.db-wal.

Option 1: Install KB5095093 through Windows Update

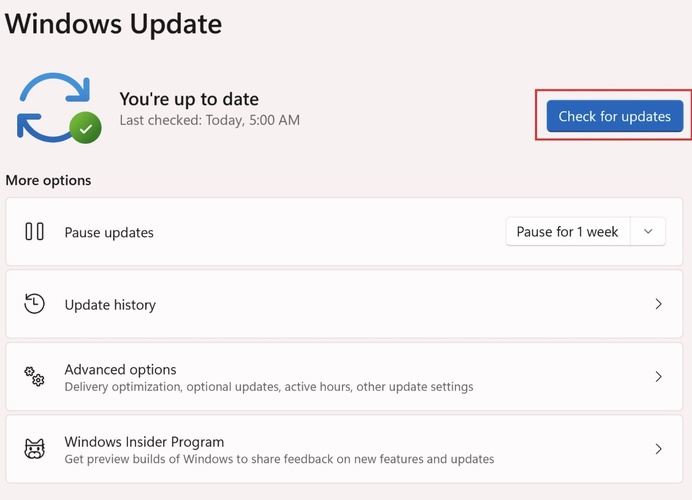

• Press Windows + I and open Windows Update.

• Select Advanced options > Optional updates. Find 2026-06 Cumulative Update Preview for Windows 11 (KB5095093).



• Select Download & install, save your work, and restart.

Microsoft officially distributes KB5095093 through the Optional updates section in Windows Update. This is the easiest route and reduces package-selection errors.

Option 2: Install KB5095093 Manually

Use this option when Windows Update cannot find the package, remains stuck, or the PC is maintained offline. It offers more control but requires the correct version and architecture.

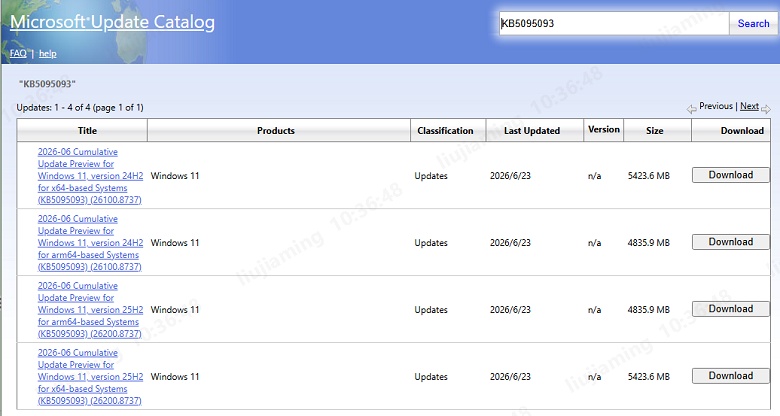

• Search for KB5095093 in the Microsoft Update Catalog.



• Download the matching Windows 11 24H2 or 25H2 package for x64 or ARM64.

• Close running apps, open the .msu file, and follow the installer prompts.

• Restart Windows and verify the build with winver.

The Microsoft Update Catalog provides separate packages for Windows versions and processor architectures, so confirm these details before downloading.

If Microsoft lists multiple MSU files or prerequisites, download all required packages and follow the official order. Administrators can use DISM to resolve package dependencies. Below, we’ve put together a step-by-step video walkthrough showing you exactly how to identify the storage bug and resolve it.

⚡ Bonus Tip: Optimize Windows Storage after Installing KB5095093

The update addresses abnormal database-log usage, but update leftovers, browser caches, crash dumps, thumbnails, and Recycle Bin data may still consume space.

4DDiG Partition Manager’s Windows Cleanup feature is useful afterward because it scans several junk categories in one interface and lets you review items before deletion. This is practical when Windows 11 system files taking up 500GB has left too little working space.

• Launch 4DDiG Partition Manager and open Windows Clean. Choose relevant junk categories and start the scan.

  FREE DOWNLOAD

  Secure Download

  BUY NOW


• Review the results, expanding categories when you need to preserve specific data. Confirm the selected items, run the cleanup.



• Once the cleanup is complete, check the freed space to confirm that unnecessary files have been removed and your C drive now has more room to operate normally.



For more practical tips on extending your C drive, check out this detailed guide.

More FAQs about the Windows 11 Storage Bug

1. Is KB5077181 causing issues?

KB5077181 was the February 10, 2026 cumulative security update for Windows 11 24H2 and 25H2. Microsoft did not list the CapabilityAccessManager storage problem as a known issue for that release. Disk growth noticed after installing it does not prove it caused the bug. The later KB5095093 release specifically included the disk-usage improvement.

2. What is CapabilityAccessManager.db-wal?

CapabilityAccessManager.db-wal is a legitimate write-ahead log associated with the Windows Capability Access Manager database. It supports transactions related to app permissions and privacy-controlled capabilities.

3. Does KB5095093 Fix the 500GB Storage Bug?

Yes. KB5095093 is the Microsoft update that specifically improves disk-space usage for CapabilityAccessManager.db-wal on Windows 11 24H2 and 25H2. Microsoft says it “improves disk space usage,” so install it, restart, and monitor the file rather than assuming the number will fall instantly. A newer cumulative update may also contain the fix.

Conclusion

The Windows 11 storage bug is easier to diagnose once you know that one protected database log can make System & reserved appear enormous. and install KB5095093 or a newer cumulative update containing its fix.

Avoid treating forced deletion as the permanent answer because the file may return. After Windows is updated, use 4DDiG Partition Manager’s Windows Clean feature to remove ordinary junk, review recoverable space, and keep the C drive from remaining unnecessarily full.
