Windows 11 26H2 System Requirements: Full Hardware Checklist & Upgrade Guide

1. System Requirements for Windows 11 26H2

Windows 11 26H2 keeps the same core requirements as 25H2. Still, verify the essentials below before upgrading: TPM 2.0, Secure Boot, UEFI, and 64-bit CPU.

A 64 GB drive is the device-capacity floor, not a promise that the upgrade will fit. Feature updates need working space for downloaded packages, temporary files, and the previous installation. Before upgrading, aim for at least 25–30 GB free on the Windows partition, and keep a current backup of irreplaceable files.

2. How to Check If Your PC Supports Windows 11 26H2？

Use a compatibility checker before changing BIOS settings. A failed result may indicate an unsupported CPU, a disabled security feature, an MBR system disk, or insufficient storage. Record the exact reason so you solve the real blocker.

Method 1: Use the PC Health Check App

• Download Microsoft PC Health Check from Microsoft’s official Windows 11 page and install it.

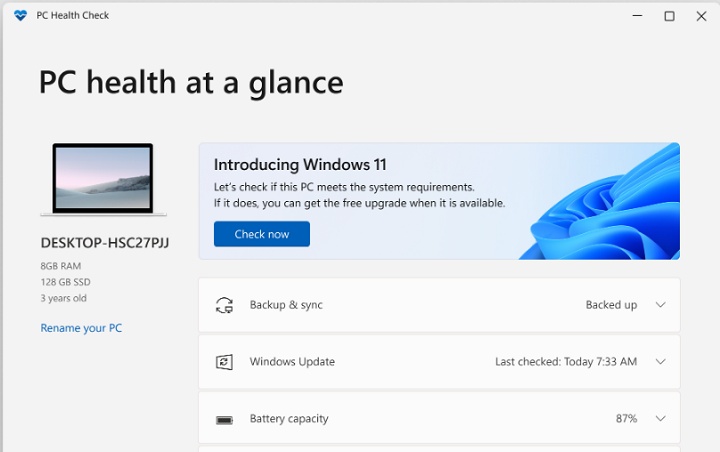

• Open the app. In the Windows 11 eligibility panel, select Check now.

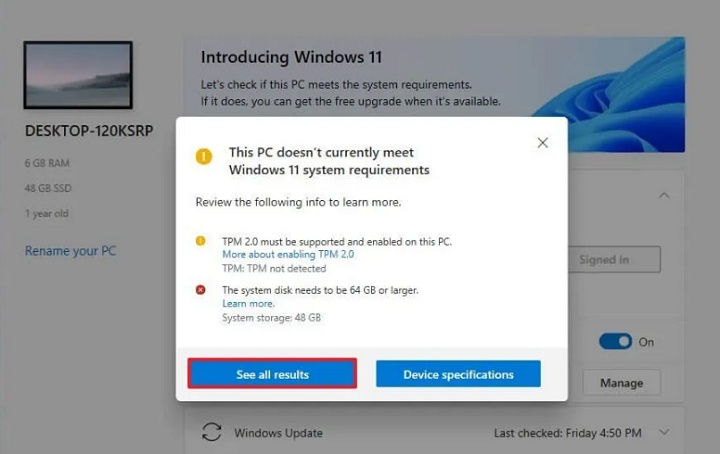

• Review the result. If the PC is not eligible, open the detailed results to identify the failed item, such as TPM 2.0, Secure Boot, processor support, or storage.



• Press Windows + R, enter msinfo32, and confirm BIOS Mode and Secure Boot State. Then enter tpm.msc to verify that Specification Version shows 2.0.

PC Health Check is the best first test because it applies Microsoft’s compatibility logic.

⚡ 3. What to Do If Your PC Doesn’t Meet Requirements?

If your computer fails the Windows 11 26H2 system requirements check, identify the specific failed item before making changes. TPM, Secure Boot, UEFI mode, and insufficient system-drive space can often be corrected through configuration or disk management. However, an unsupported processor usually cannot be fixed through BIOS settings alone.

Before proceeding, back up important files and save BitLocker recovery key if device encryption is enabled.

Method 1: Enable TPM, Secure Boot, and UEFI Mode in BIOS

Note:

Do not switch from Legacy mode to UEFI if the Windows system disk still uses the MBR partition style. Windows may fail to start until the disk is converted to GPT.

• Restart the computer and enter the BIOS or UEFI setup. The required startup key varies by manufacturer but is commonly F2, F10, F12, Delete, or Esc.

• Locate and enable the TPM setting. Depending on the system, it may appear as Intel PTT, AMD fTPM, Security Device Support, or Trusted Computing.

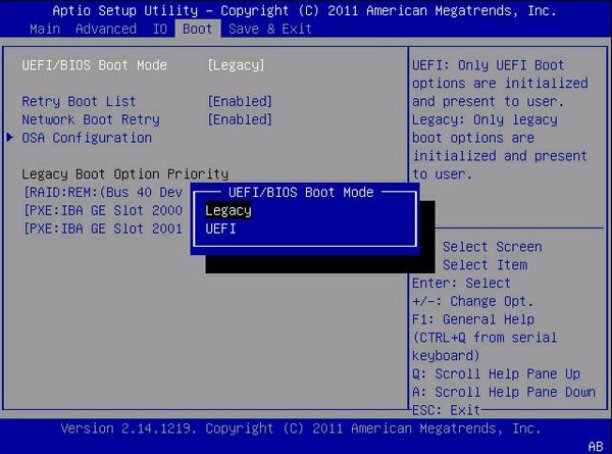

• Set the boot mode to UEFI, disable Legacy or CSM mode if appropriate, and enable Secure Boot.



• Save the changes, restart Windows, and run the compatibility check again.

Also, avoid clearing the TPM because doing so may remove stored security information and trigger a BitLocker recovery request.

Method 2: Extend the Hard Drive

A PC may have a storage device larger than 64 GB but still lack enough free space on the system partition to install the feature update. Windows needs additional working space for installation files, temporary data, updates, and rollback files.

Start by deleting temporary files and unused applications. If another partition on the same disk has available capacity, you can reallocate some of that space to the C drive:

• Open Disk Management. If unallocated space is located immediately after the C drive, right-click the C drive and select Extend Volume.



• Follow the Extend Volume Wizard, specify the amount of space to add, and click Finish.

The built-in tool cannot extend the C drive when the unallocated space is separated from it by another partition. In that situation, 4DDiG Partition Manager can help by moving the intervening partition so the unallocated space becomes adjacent to the C drive, allowing you to safely extend it without data loss.

• Install and open 4DDiG Partition Manager. In the left sidebar, choose Partition Management. Select your drive, then click Resize/Move.

  FREE DOWNLOAD

  Secure Download

  BUY NOW


• In the window that appears, drag the edges of the partition to adjust its size, or enter the desired size in GB. After making the changes, a preview will be shown. If everything looks correct, click OK.

  Note:

  To move a partition, drag the entire partition block toward the unallocated space, or manually specify how much unallocated space should be placed before or after it.



• Review the operation details carefully. Once confirmed, click OK to begin.



• The resizing process will take a few moments to complete. When the process finishes and the partition has been adjusted as expected, click Finish.

As a practical target, keep at least 25–30 GB free on the system partition before attempting the upgrade. The exact amount required may vary depending on installed applications, optional features, language packs, and existing update files.

Method 3: Use 4DDiG Partition Manager to Upgrade to Windows 11

If several compatibility issues appear at the same time or your PC remains ineligible because of TPM, Secure Boot, CPU, or disk-layout restrictions. 4DDiG Partition Manager provides a centralized Windows 11 upgrade workflow. It can automatically check compatibility and guide you toward an appropriate upgrade option instead of requiring you to troubleshoot each requirement separately.

• Download, install, and launch 4DDiG Partition Manager. Select Windows Download and Upgrade from the left-hand menu, and then choose Windows 11 Upgrade.

  FREE DOWNLOAD

  Secure Download

  BUY NOW


• Wait while the program checks your processor, TPM status, Secure Boot configuration, boot mode, and disk layout. Review the compatibility report carefully to see which items pass and which ones require attention.



• If the PC does not meet requirements, click Next and follow the recommended option. Depending on the detected problem, the program may guide you to prepare for Windows 11 installation.



• Then, select the required Windows version, edition, and system language.



• After the preparation process finishes, follow the on-screen instructions to complete the Windows upgrade.



More FAQs About Windows 11 26H2

1. Can I install 26H2 on a 7th Gen Intel or Ryzen 1000 PC?

Most 7th-generation Intel and first-generation Ryzen processors are not on Microsoft’s standard supported CPU lists for Windows 11. A workaround may technically start installation, but the device can remain unsupported and may not receive the same reliability, security, or update assurances.

2. Will my Windows 10 license work on 26H2?

A properly activated Windows 10 device that qualifies for the Windows 11 upgrade generally receives a digital Windows 11 license for the corresponding edition. Confirm activation under Settings before upgrading, and link the license to your Microsoft account when appropriate.

3. How much free space do I need to upgrade?

Microsoft lists a 64 GB or larger storage device as the minimum. The actual feature update also needs temporary working space, so 25–30 GB free on C drive is a sensible preparation target. The precise amount varies with language packs, optional features, drivers, and rollback files.

Conclusion

The Windows 11 26H2 system requirements are best treated as the current Windows 11 baseline unless Microsoft announces a version-specific change. Start with PC Health Check, then confirm TPM 2.0, UEFI, Secure Boot, CPU support, and practical free space.

If compatible hardware is blocked by an MBR system disk or a cramped C drive, 4DDiG Partition Manager can convert the disk layout and resize partitions through guided workflows. Back up first, verify the correct disk, and change BIOS settings only after the Windows installation is ready for UEFI boot.
