Clone NVMe to NVMe SSD: Tutorial & Troubleshooting

Part 1: Preparing for NVMe Cloning

Before you start cloning, a few minutes of preparation can prevent data loss and save hours of troubleshooting.

1Back up Important Data

The cloning process will overwrite the destination drive. Also, even the best NVMe cloning software can't protect you from hardware failure mid-process. Back up your critical files to an external drive or cloud storage before doing anything else.

2Ensure the New NVMe Has Enough Space

The target drive must be equal to or larger than the used space on your source drive. For example, if your 500GB NVMe has 200GB of data, a 256GB destination drive will work fine. Check your current disk usage in Windows Explorer or Disk Management before proceeding.

⚡ Part 2: How to Clone NVMe to NVMe with 4DDiG Partition Manager

When it comes to cloning NVMe drives on Windows, 4DDiG Partition Manager stands out as one of the most straightforward tools available. It supports both OS disk cloning and data disk cloning, handles GPT and MBR partition schemes, and automatically aligns partitions to 4K for optimal SSD performance — all without requiring you to reinstall Windows.

Here's how to clone NVMe to NVMe using 4DDiG Partition Manager:

• Download 4DDiG Partition Manager from the official website and install it. Make sure your target NVMe drive is already connected before launching the app.

  FREE DOWNLOAD

  Secure Download

  BUY NOW

• On the main screen, select the “Clone Data Disk” option. If you're cloning your system drive (the one Windows is installed on), choose Clone OS Disk.



• The software will display all connected drives. Select your current NVMe as the source disk and your new NVMe as the target disk, then click Next.



• 4DDiG will show you a preview of how partitions will be arranged on the new drive. By default, partitions from the source disk will expand to fill the entire target disk. If you want a custom layout, drag the partition handles to resize. When the preview looks correct, click Start.

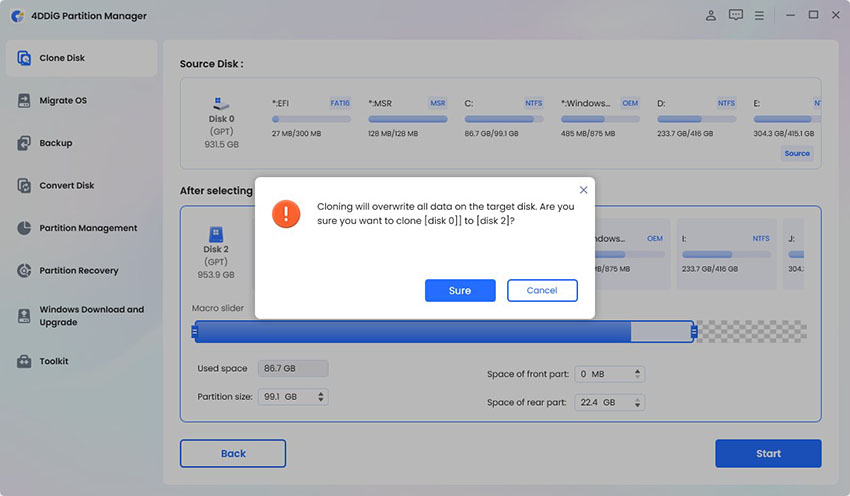

• Click “Sure” to confirm and start the cloning process. Do not shut down your PC or interrupt the process while cloning is in progress. The time required depends on the amount of data being transferred.



• Once cloning completes, shut down your PC. If you cloned to an external enclosure, remove the new NVMe and install it in your primary M.2 slot, replacing the old drive. Power on and enter your BIOS/UEFI (usually by pressing F2, Del, or F12 during startup) to confirm the new NVMe is set as the first boot device.



Part 3: Common Issues and How to Fix Them

Even with the best NVMe cloning software, a few issues can crop up after the process completes. Here's how to handle the most common ones.

Issue 1: Boot Failure after Cloning

The PC won't boot from the new NVMe, or boots from the old drive instead.

Fix:

Enter BIOS/UEFI settings (F2 / Del / F12 at startup) and check the Boot Order or Boot Priority section. Set the new NVMe as the primary boot device. On modern systems using UEFI, also confirm that Secure Boot is enabled and the boot mode matches what was on the original drive (UEFI, not Legacy/CSM).

Issue 2: GPT/MBR Partition Scheme Mismatch

The cloned drive isn't recognized as bootable, or Windows shows an error related to the partition table.

Fix:

This typically happens when the source disk uses GPT and the system is configured for MBR (or vice versa). Go into BIOS and make sure the boot mode (UEFI vs. Legacy) matches the partition style of the cloned drive. You can check the partition style in Windows Disk Management: right-click the disk and select Properties > Volumes.

Related Articles:

• How to Fix NVMe SSD not Detected? | 5 Methods
• How to Clone a Disk with Bad Sectors?

More FAQs About NVMe SSD Cloning

1. How do I clone a hard drive to an NVMe SSD?

It’s the same as NVMe-to-NVMe cloning. Connect the NVMe SSD and clone from the HDD to the NVMe using your disk cloning tool.

2. Can I clone NVMe to NVMe?

Yes, absolutely. As long as the destination NVMe has enough capacity to hold the used data from the source, the clone will work without any data loss on the source drive.

3. What does cloning an NVMe do?

Cloning creates a sector-level or file-level copy of everything on your NVMe onto a new drive. Unlike a standard file backup, a clone lets you swap the new drive into your system and continue working immediately, with no reinstallation required.

4. Does Windows 11 have a built-in cloning tool?

No. For cloning NVMe drives, you need cloning software, which handles partition alignment, boot record replication, and GPT/MBR compatibility automatically.

Conclusion

Cloning NVMe to NVMe is one of the cleanest ways to upgrade your storage without the hassle of reinstalling Windows or reconfiguring your applications. With the right preparation and a reliable tool, the whole process typically takes under an hour.

4DDiG Partition Manager makes it accessible for users at any skill level. Whether you're upgrading to a larger NVMe, replacing a failing drive, or cloning SSD to NVMe for the first time, it's a dependable choice that gets the job done without risk to your source data.
