R-Studio data recovery helps Windows users retrieve deleted files, search formatted drives, and locate data on lost partitions. Its disk and partition controls give you several routes to the same goal: finding readable copies of your files and saving them somewhere safe.

For a recent deletion on an existing partition, start by opening the drive's file list. If the files or partition are missing, use a scan instead. This guide walks through both routes, explains what the free demo actually saves, and shows when a simpler tool suits everyday file loss. Stop writing new data to the affected drive before you begin.

R-Studio Data Recovery for Windows: How to Use It Step by Step, 4DDiG editorial illustration

What Is R-Studio Data Recovery?

R-Studio is recovery software from R-Tools Technology. It can search HDDs, SSDs, USB drives, and memory cards, including Windows file systems such as NTFS, FAT, exFAT, and ReFS. It is not RStudio, the programming environment for R; you do not need R or coding knowledge to follow this Windows recovery workflow.

R Studio data recovery software offers disk imaging, configurable file searches, and RAID reconstruction. Those controls help with complex storage layouts, while an accidentally deleted folder often needs only the basic file recovery view. A recognized partition is a possible file system found during scanning, so inspect its contents before treating it as the correct result.

The source must remain readable. If a drive clicks, repeatedly disconnects, or disappears during access, seek professional assessment before repeated scans. Software also cannot restore content that has been overwritten. On SSDs, TRIM can make deleted data unavailable even when a filename remains visible. These limits apply whichever recovery tool you choose.

Is R-Studio Data Recovery Free?

R-Studio data recovery is free to evaluate in demo mode, but it does not provide unrestricted free recovery. The official Windows download page allows the demo to save files up to 1024 KB each. Larger supported files can be previewed; saving them requires a suitable license. This is a per-file limit, not one shared allowance for all recovered files.

Use the demo to locate your missing files and inspect recognizable content before paying. For example, several small text files can fall within the limit individually, while one larger photo can exceed it. A filename in the results is not proof that the file's contents are intact, and purchasing a license does not repair damaged data.

As checked on November 2, 2026, the standard Windows license is $79.99, and the Windows download lists 9.5 build 191861. Lower-priced FAT and NTFS editions have narrower file system coverage. Check the current edition and source file system before buying rather than assuming every license covers the same drives.

How to Use R-Studio Data Recovery on Windows

Get the Windows installer from R-Tools Technology's official website. For an R-Studio data recovery download, choose the Windows desktop application, rather than RStudio for programming or an unrelated download listing. Install it on a different physical drive from the one containing the lost files, and prepare a separate destination with enough free space.

The steps below keep simple deletion separate from missing-partition recovery. R-Studio data recovery can start with an existing partition's file records; a full scan becomes the next route when those records do not reveal the files. If Windows asks to format the source, cancel that prompt and recover the data first.

1. Open the Source Partition for a Recent Deletion

Run R-Studio with administrator privileges. In the Drives panel, identify the source using its device model, capacity, and partition details.

If the partition still exists and files were simply deleted, double-click that logical disk, or select Open Drive Files. Browse the folder where the files originally lived. This lists available file records without requiring a full drive scan first.

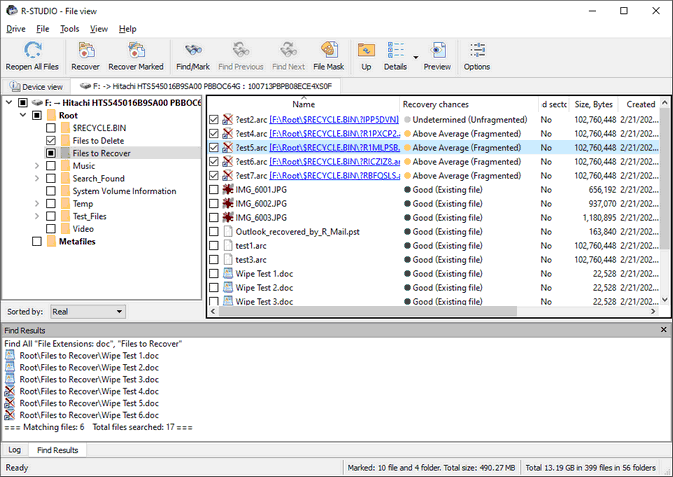

R-Studio for Windows file panel with folders and recoverable files

If the expected files appear, continue to previewing them. If they are missing, or the partition was formatted or lost, use the scan route below.

2. Scan When the Files or Partition Are Missing

Select the relevant partition, or the physical disk when its partition is missing, and click Scan. For a missing partition, scan the entire source disk. Enable Extra Search for Known File Types to search for supported file signatures as well as file system structures.

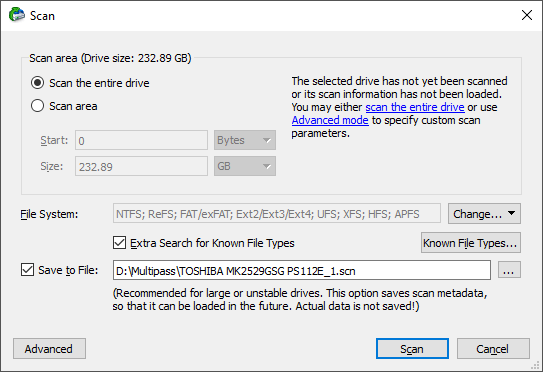

R-Studio Scan dialog with file system and known-file-type search settings

If saving scan information, choose a location on another physical drive. This file stores scan metadata, not a backup of the lost data.

After scanning, open the recognized partition that matches the expected file system and size. If several appear, inspect their folder trees and preview familiar files before choosing. Raw results can contain files with generated names because their original metadata is missing.

3. Preview and Mark the Files You Need

Search or browse the results, then double-click a supported file or use Preview. Check recognizable content: a photo should display correctly, and a document should contain readable text.

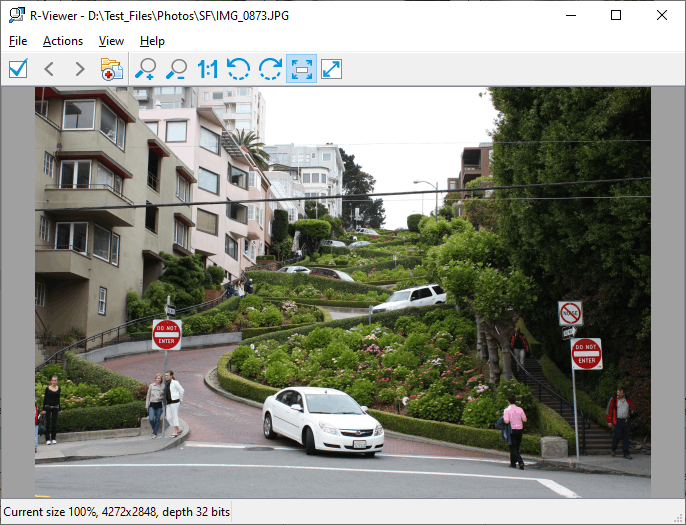

R-Studio image preview used to inspect file contents before recovery

Mark the checkboxes beside the required files or folders. A successful preview is useful evidence for that file; it does not guarantee every file in the results will recover correctly.

4. Recover to Another Drive and Check the Copies

Click Recover Marked. In the Recover dialog, set the output folder on a separate physical drive and confirm with OK. Keep the folder structure option enabled if retaining the original organization helps.

Another partition on the same disk is still the same physical drive. For example, if the source and destination both belong to Disk 0, use a separate external drive for the recovered copies instead.

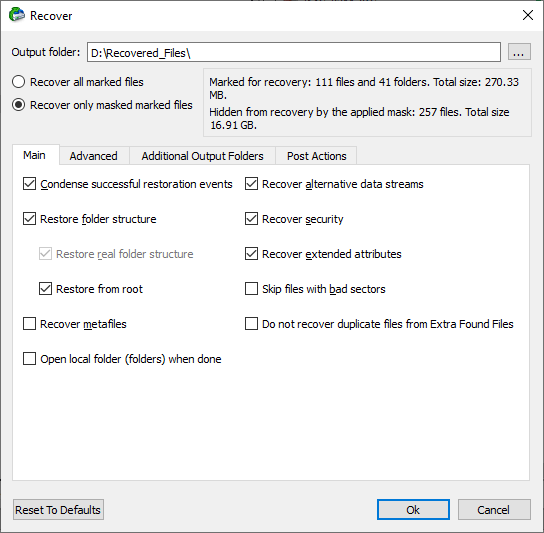

R-Studio Recover dialog with the output folder and recovery options

Open several recovered files in their normal applications. Check photos, documents, and longer videos rather than relying only on filenames or the completion message. For copies that fail this check, see our guide to recovered files that won't open.

If the original folders are missing, check Extra Found Files in the results and use file search before assuming nothing was found. Raw results can preserve content without its original name. If files from one recognized partition contain the wrong data, inspect another matching result and preview a familiar sample before recovering the rest.

For R-Studio data recovery, an unsupported preview format is different from proof of damaged content. If a supported preview fails, inspect other familiar files from the same result. Where the demo permits saving a sample, open it in its normal application before committing to a larger recovery.

R-Studio Data Recovery Alternative: When to Switch

An R-Studio data recovery alternative makes sense when choosing physical disks, scan settings, and recognized partitions adds more work than your case needs. For an accidentally deleted Windows document or photo folder, 4DDiG Windows Data Recovery offers a location-based starting point, followed by file filters, previews, and recovery to another drive.

FREE DOWNLOAD

Secure Download

FREE DOWNLOAD

Secure Download

Choose it for a more guided workflow, rather than an assumed recovery-rate advantage. R-Studio data recovery remains useful for detailed partition analysis and advanced storage layouts. Neither tool can recover overwritten or TRIM-discarded content, and a different interface does not remove physical damage or licensing limits.

Download and install 4DDiG on a different physical drive from the source. Free scanning and supported previews help you inspect results; check the current license terms for saving recovered files.

  • Select the original location. Open 4DDiG, select the drive or location that held the files, and start scanning. Choose the source containing the lost files, rather than the destination prepared for the recovered copies.

    4DDiG Windows location selection before a recovery scan
  • Find and preview the results. Use search and file type filters to narrow the list. Preview recognizable photos or documents so you can judge their contents before selecting what to recover.

    4DDiG Windows scan results with file type filters
  • Save and verify. Select the needed files, click Recover, and choose another physical drive as the destination. Open the saved copies in their normal applications to confirm that they are usable.

    Windows dialog for choosing a different recovery destination

FAQ

Is R-Studio data recovery free?

The demo is free to download and evaluate. It saves files up to 1024 KB each and previews larger supported files, but saving those larger files requires a license. Check file sizes and previews before deciding whether to buy.

Is it safe to download R-Studio data recovery?

Use the official R-Tools Technology website and select the Windows version. Avoid cracked installers and third-party repackaged downloads. Install outside the affected physical drive, and save recovered files elsewhere; the download source alone does not protect lost data from being overwritten.

Is there an R-Studio data recovery alternative for simple file loss?

Yes. 4DDiG offers a drive-or-location selection workflow with scanning, filters, and previews for everyday Windows file loss. Choose based on the files you can preview and the controls you need. Switching tools cannot recover content already overwritten or discarded through TRIM.

Conclusion

Start R-Studio data recovery by identifying the source and checking whether its partition still exists. Use the demo to inspect results, then choose a license only if the files and edition fit your needs. Keep R-Studio for detailed storage work; for everyday Windows file loss with fewer setup decisions, we recommend 4DDiG Data Recovery. Whichever route you take, save to another physical drive and verify the recovered copies.
